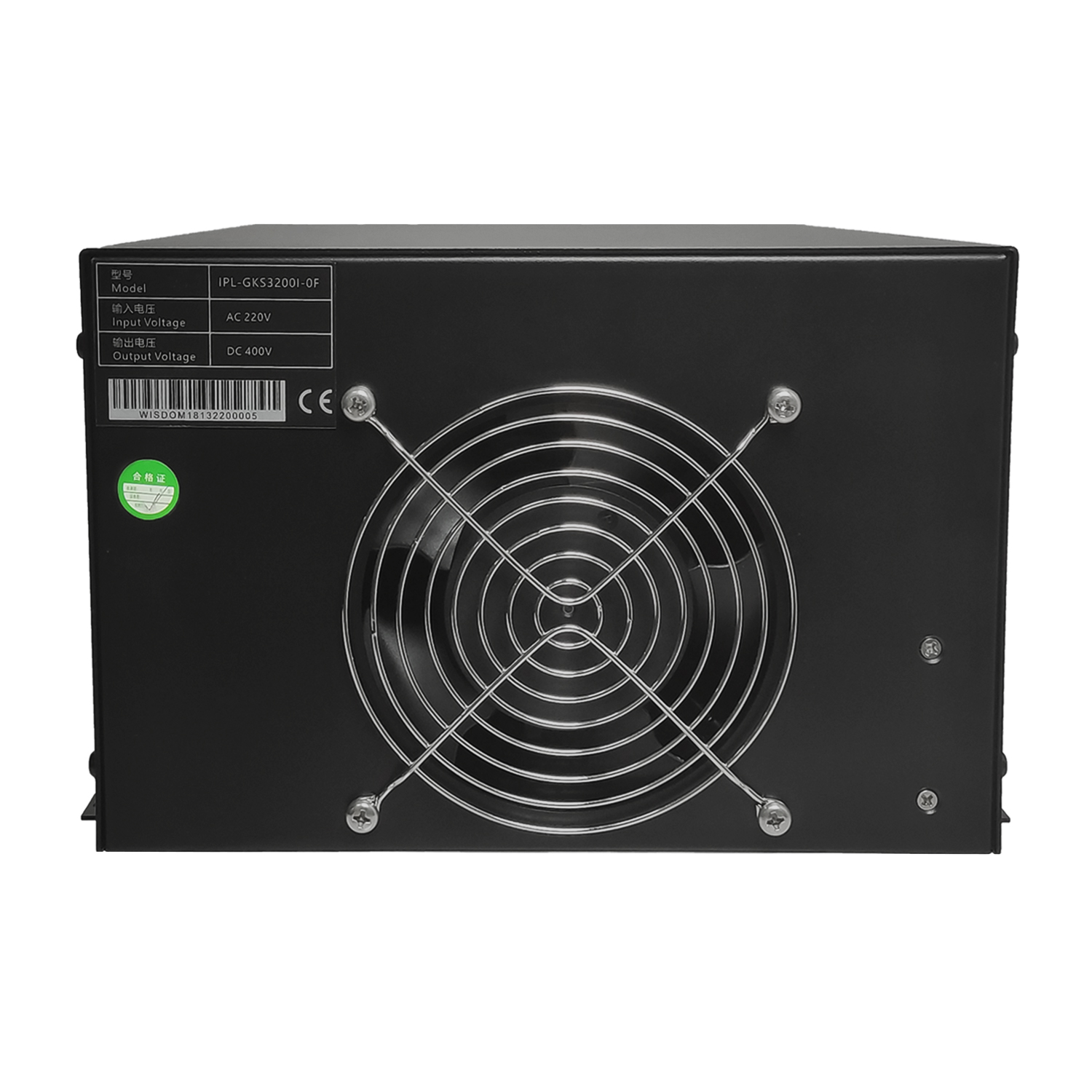

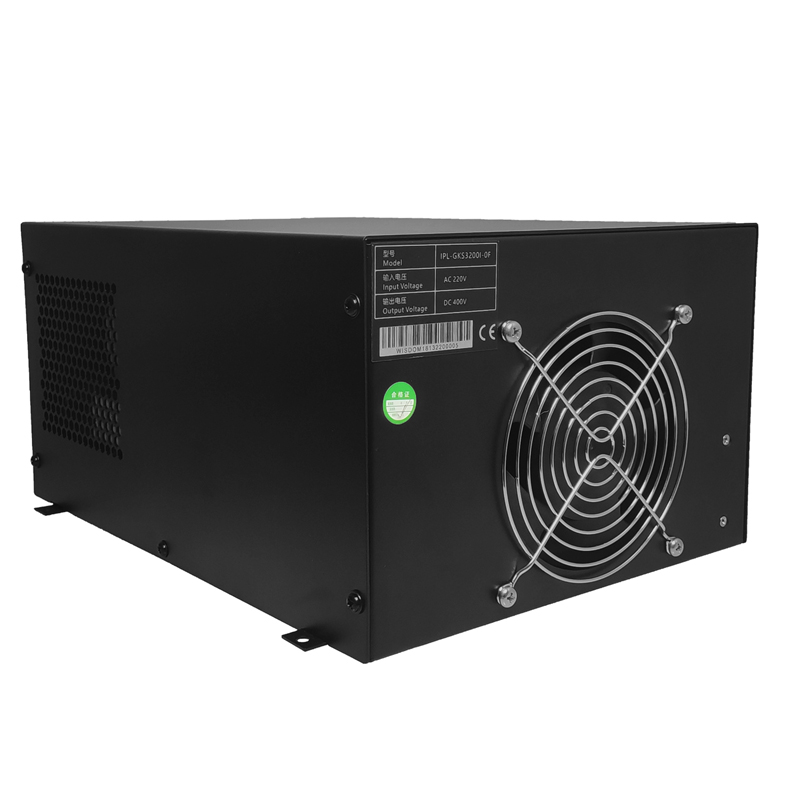

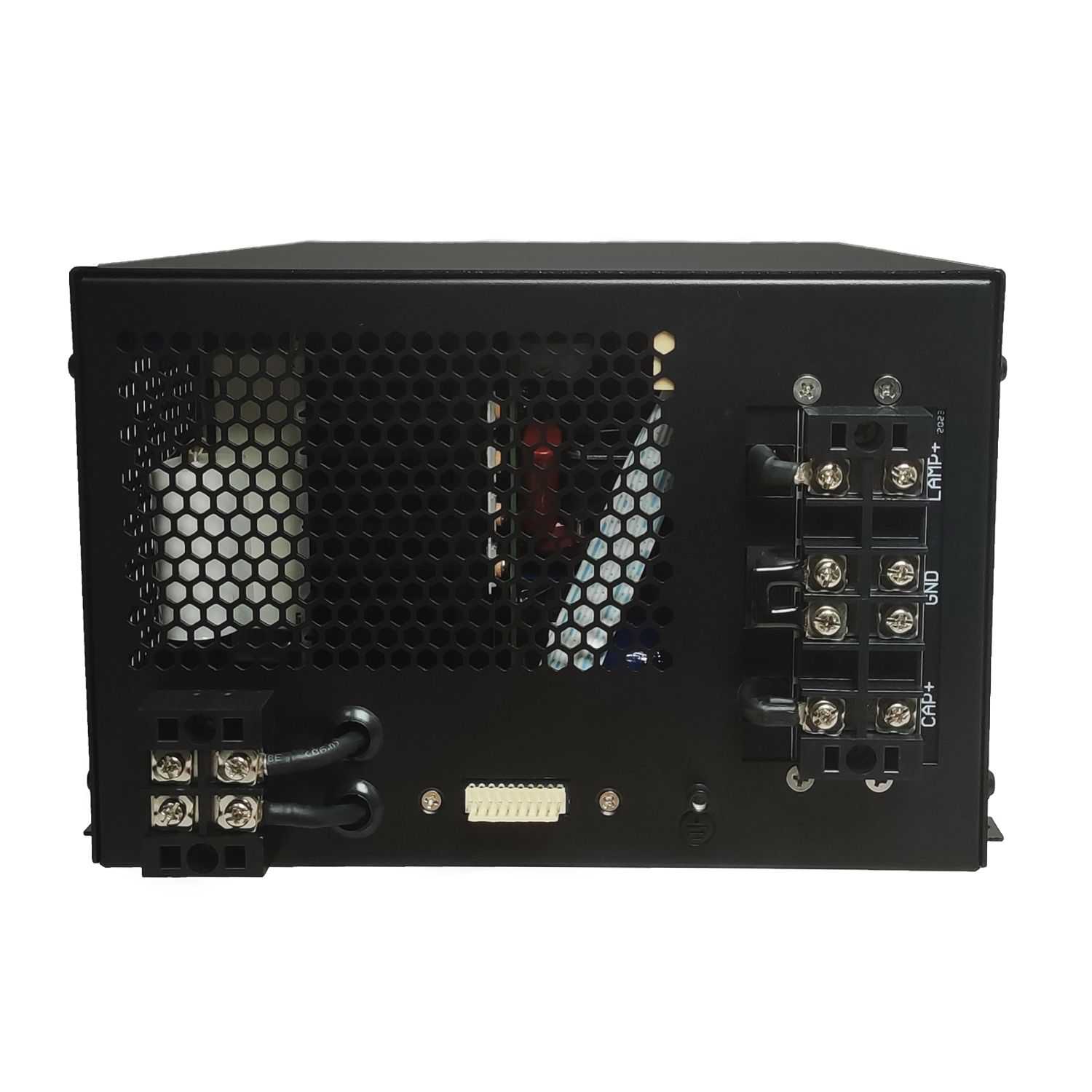

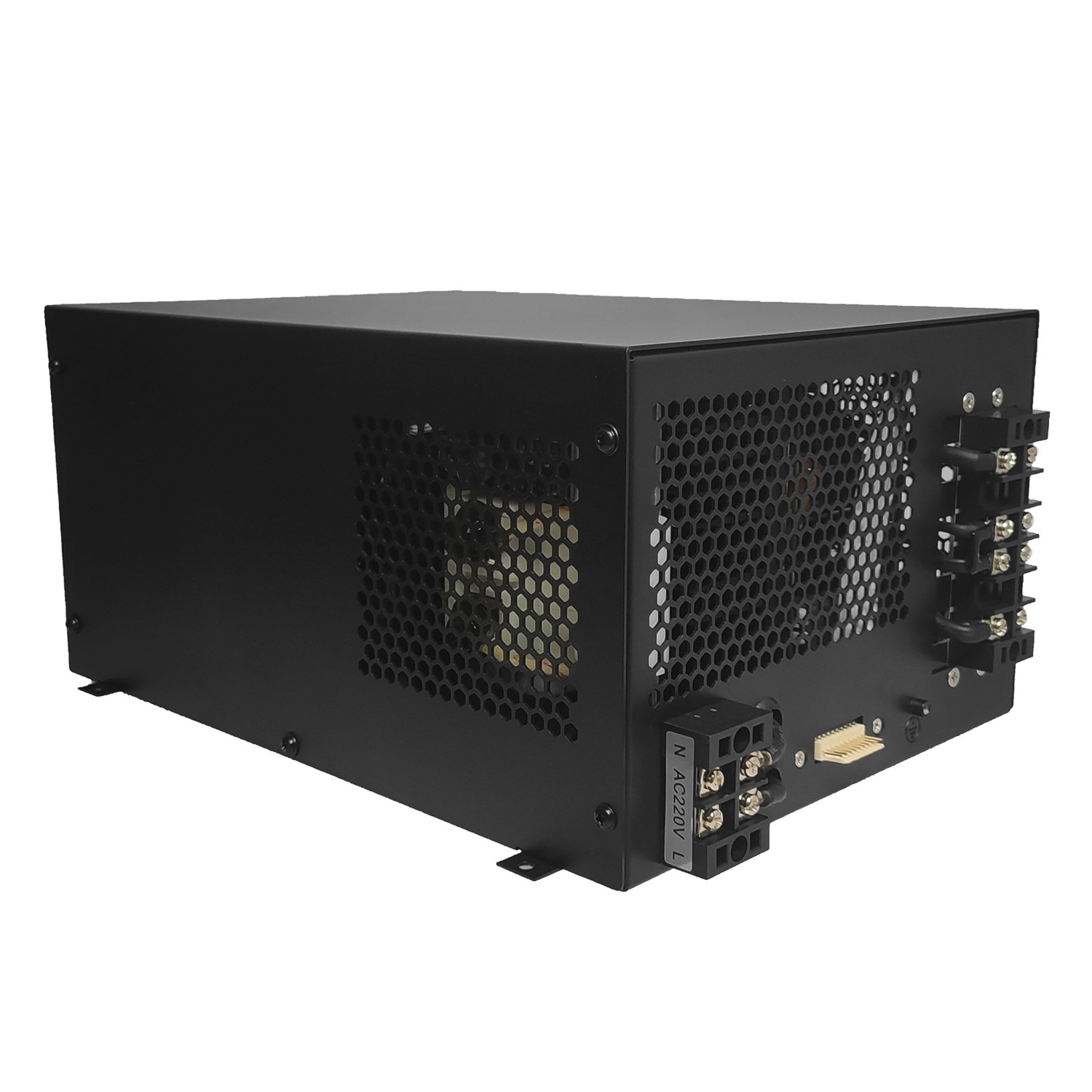

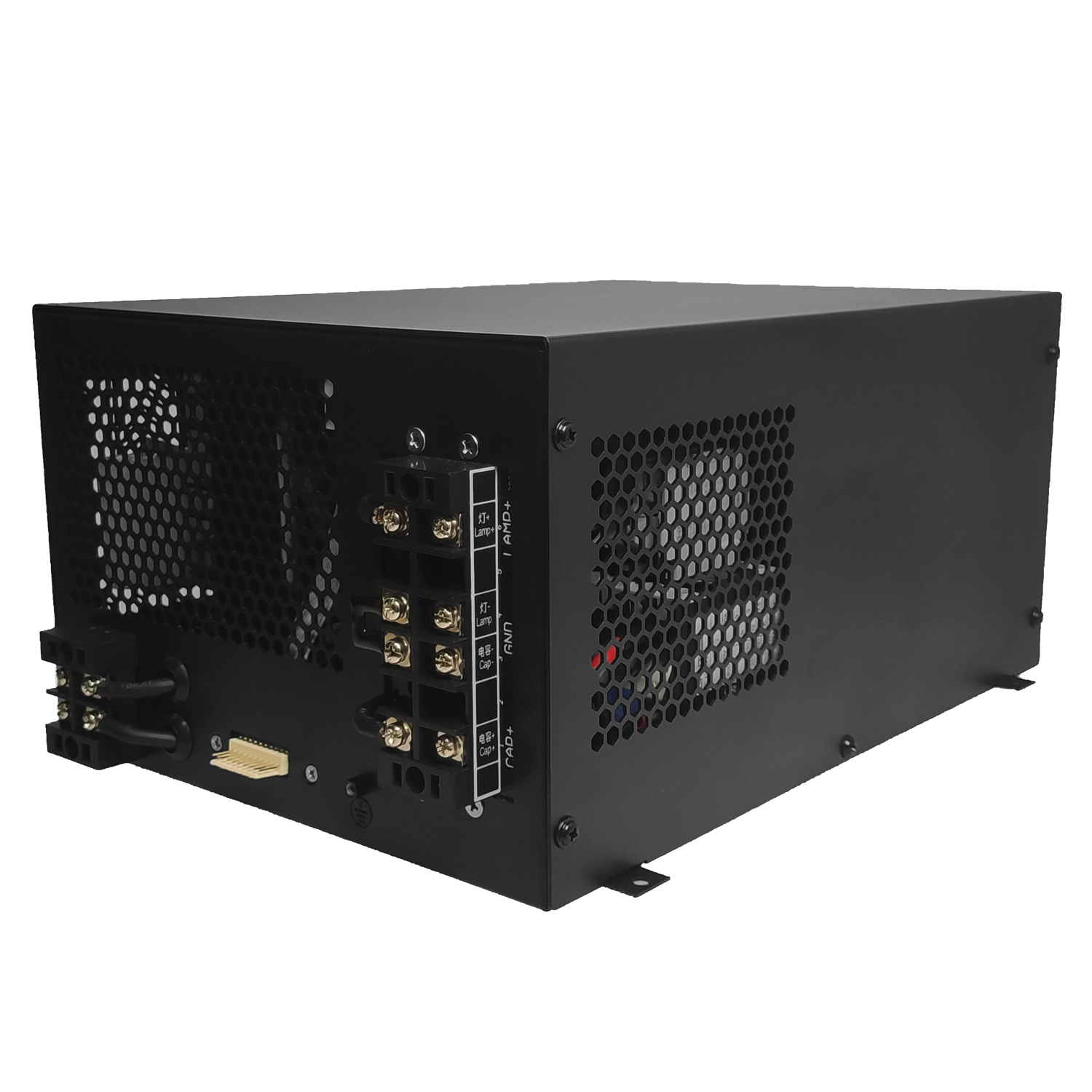

The 3200W IPL power supply (PFC) is suitable for IPL system. With E-Light handle, it can achieve hair removal, skin rejuvenation and other beauty effects.
| Item | Parameters |
| Input voltage | G–220VAC (±10%) |
| Inter voltage frequency | 50Hz~60Hz |
| Output voltage | 220~400VDC adjustable ① |
| Output peak current (Based on xenon lamp 9*45*100) | 446~ 1157A |
| Output power | Max. 3200W |
| Output frequency | 1~ 10Hz adjustable |
| Temperature protection | 75℃ |
| Working surroundings temperature | -20~40℃ |
| Working surroundings humidity | Relative humidity 10%~75% |
| Storage surroundings temperature | -20~85℃ |
| Storage surroundings humidity | Relative humidity 5%~85% |
| Cooling method | Air cooling |
| Insulation impedance | >20MΩ |
| Dimension(L*W*H) | 337.4mm x 250.6mm x 154mm |
| Weight | 9. 1kg |
| CE certification number | BSTDG190111169201SC BSTDG190111169201EC BSTXD190612868001SC BSTXD190612868001EC |
Product Features
1. Corresponding to energy regulation Output voltage.
2. The unique pre ignition circuit effectively extends the lifespan of the xenon lamp.

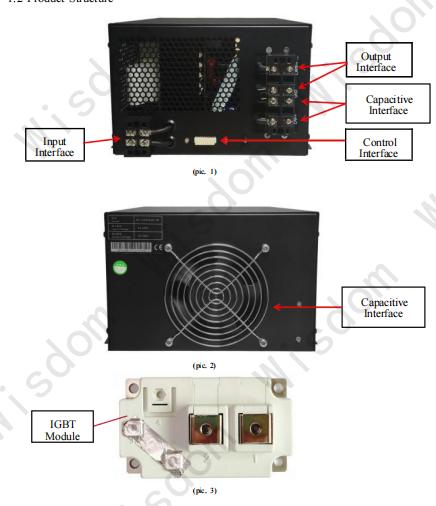

3. Using integrated IGBT modules, efficient and stable.
4. Unique stress circuit design ensures safety and reliability.
5. Equipped with power factor correction circuit.
6. Forced air cooling.
Paper box packaging, with product name, model, manufacturer’s quality department inspection certificate, manufacturing date and other information on the power supply body.
This packaging is suitable for transportation by car, ship, airplane, train, etc. During transportation, it should be rainproof and handled in a civilized manner.
