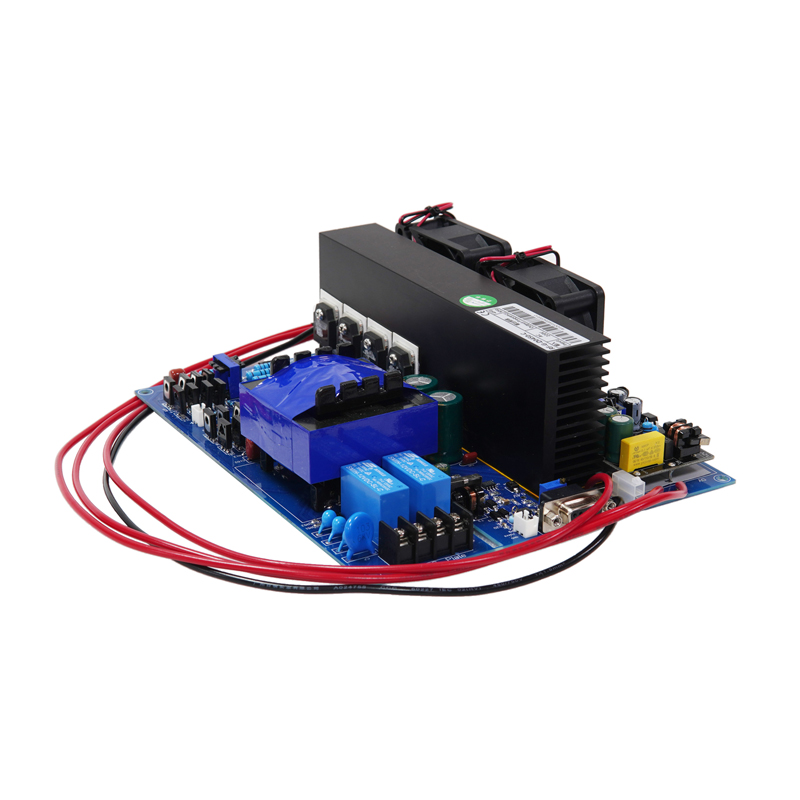

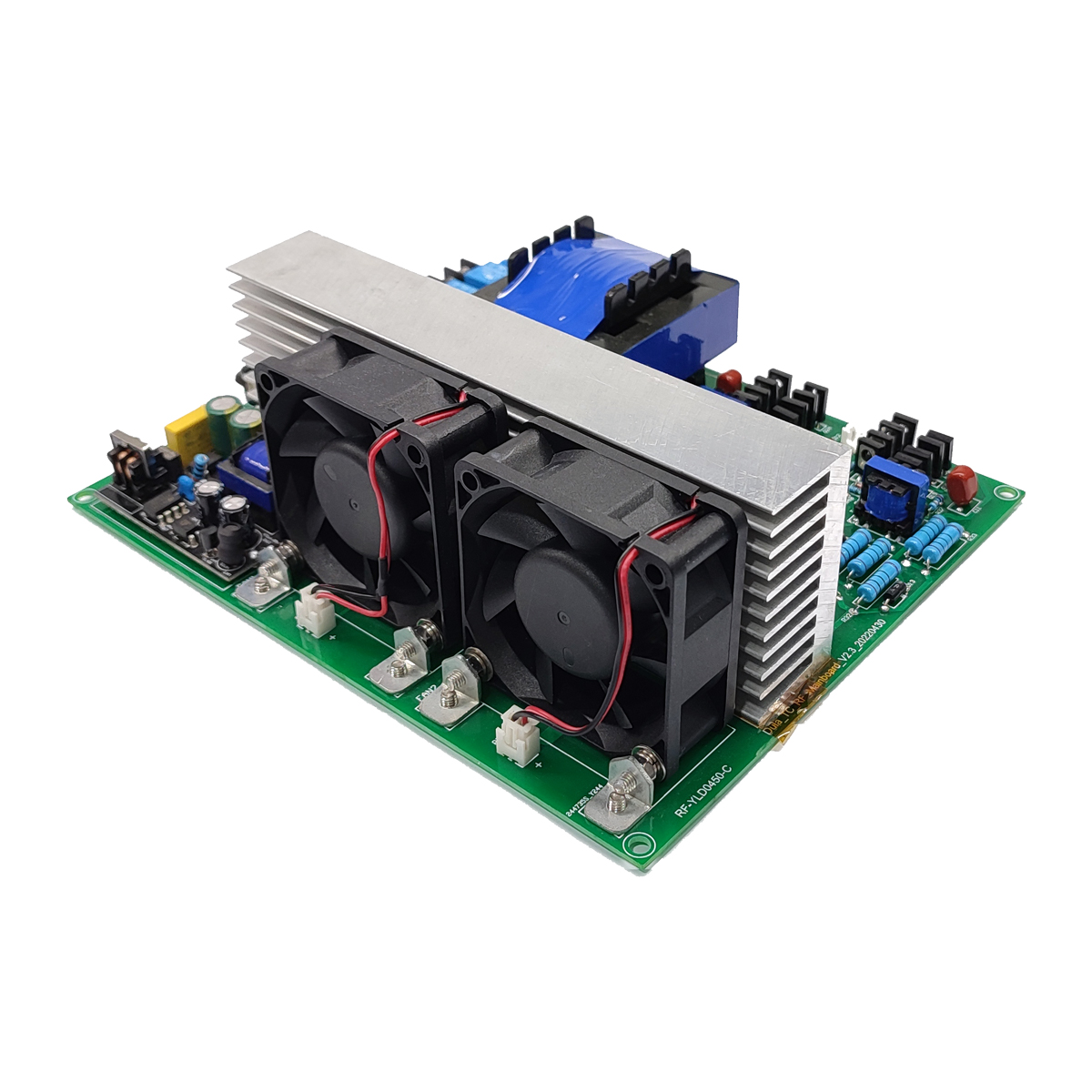

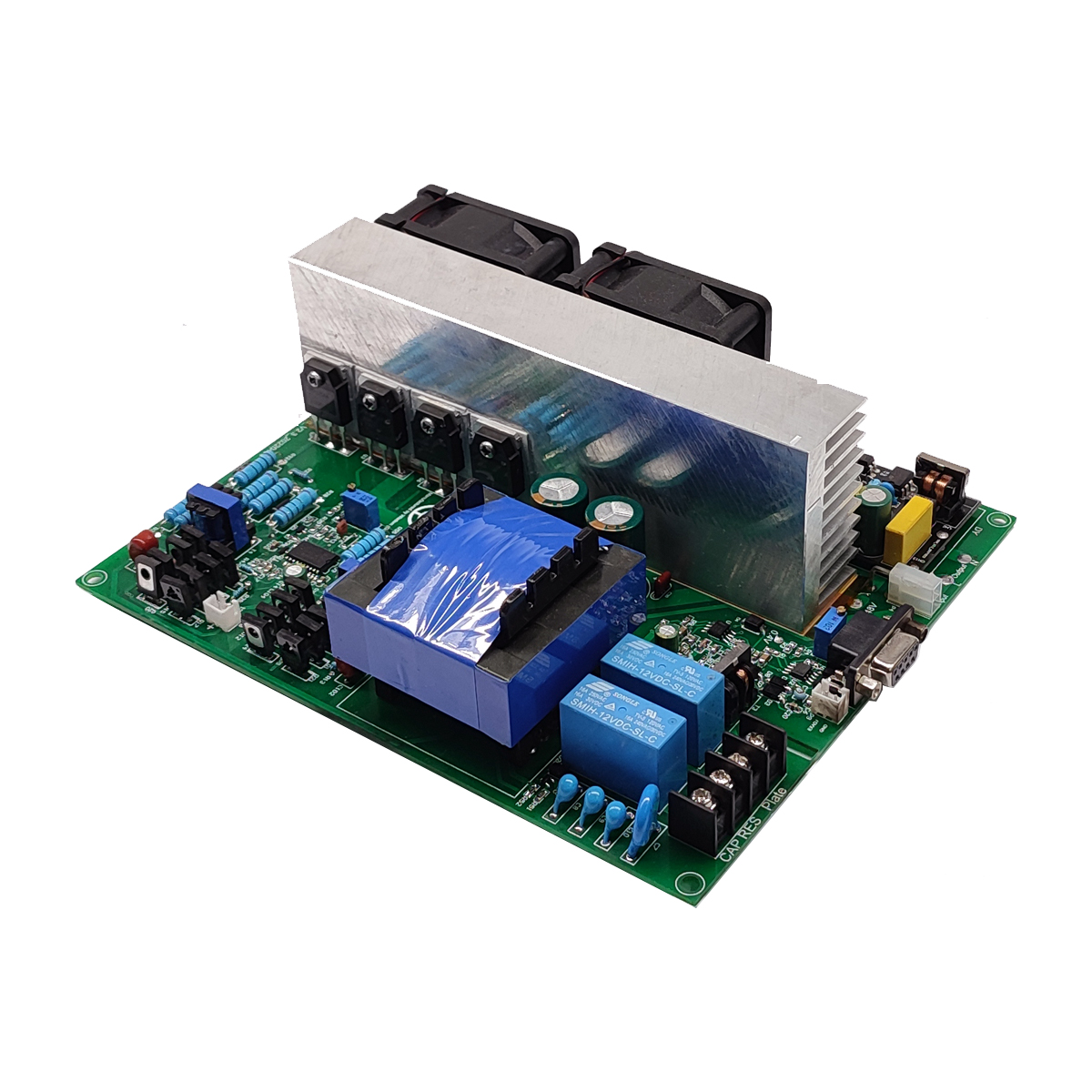

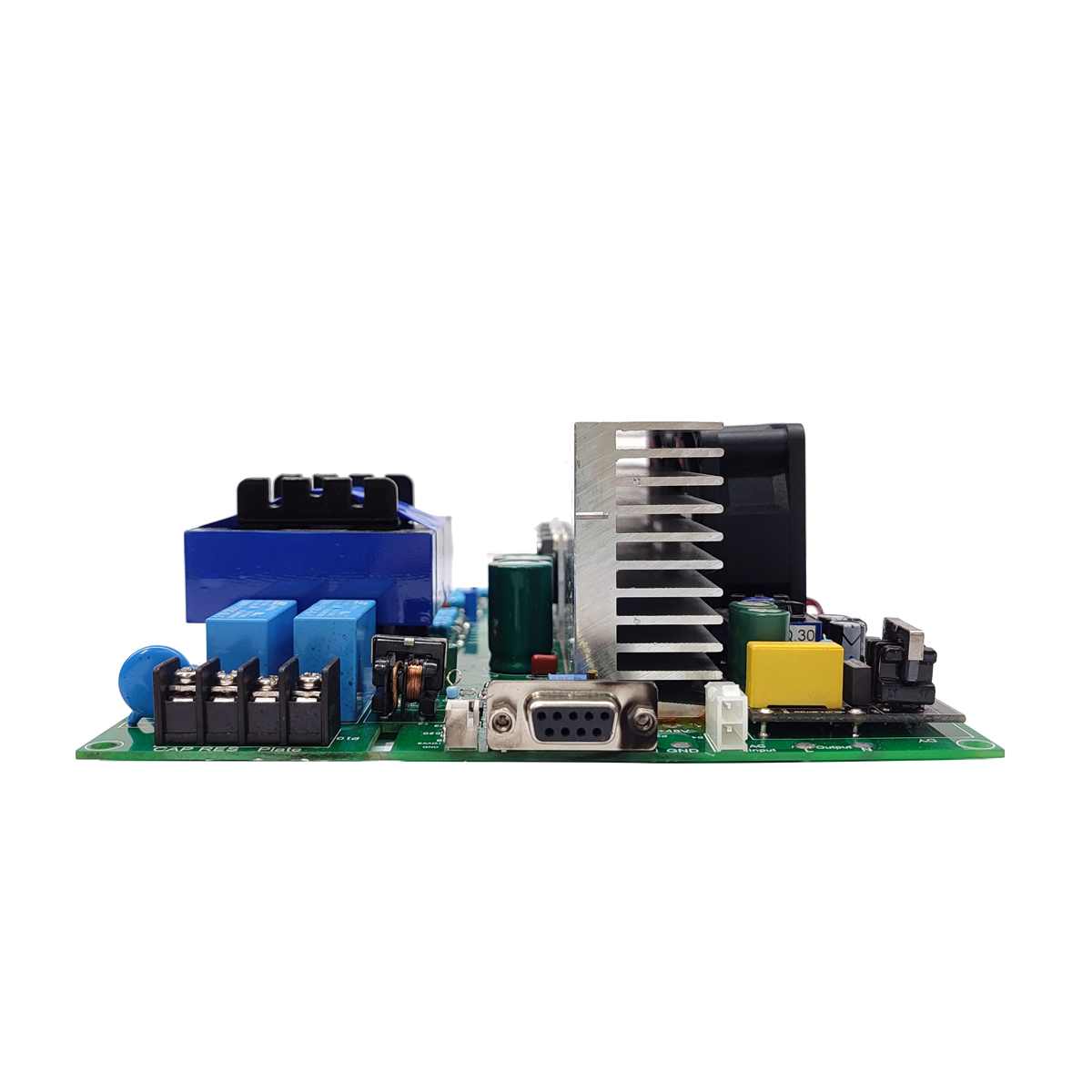

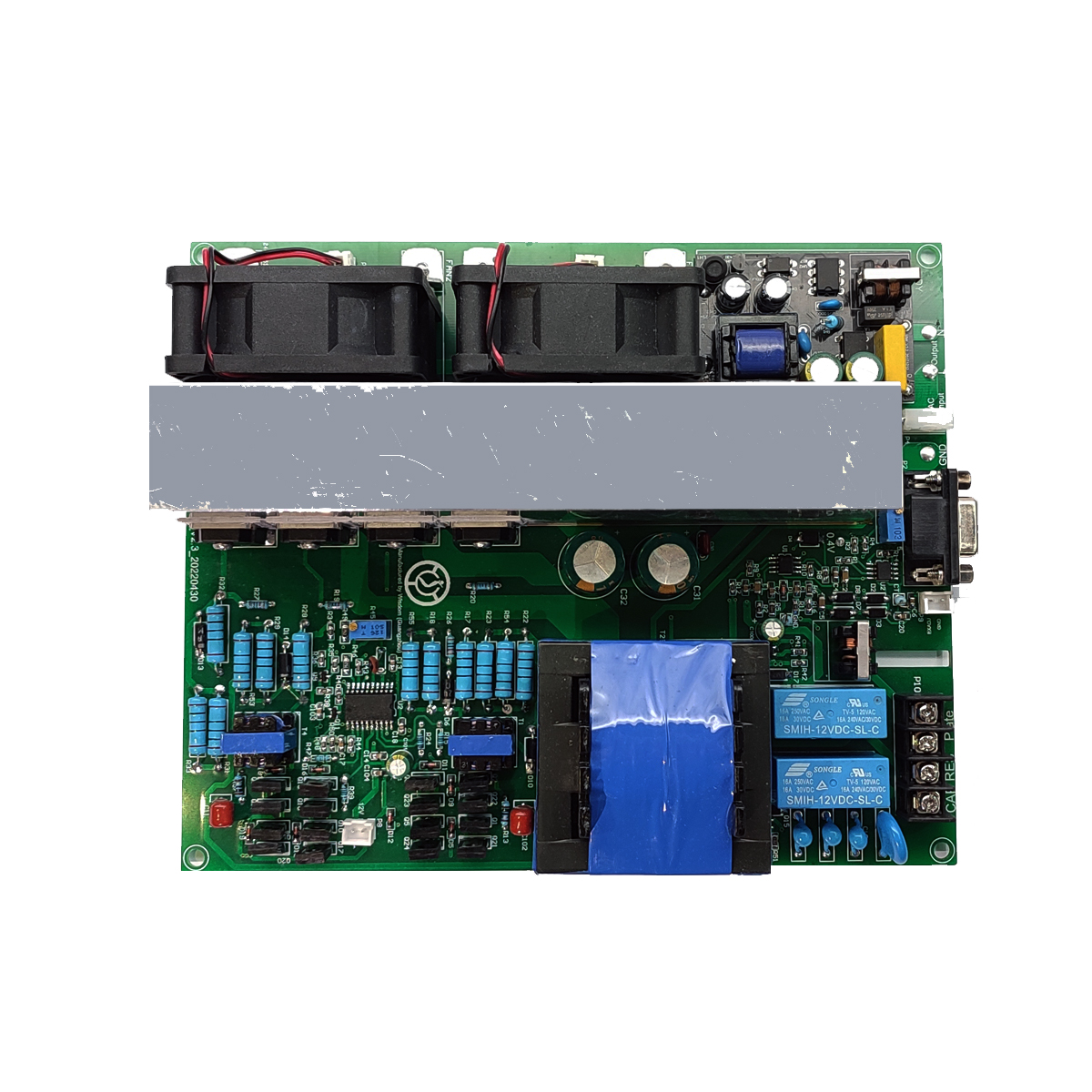

The dual ceramic RF power supply, together with the ceramic head, the handle of the metal head and the negative circuit board, constitutes a RF Beauty system, which can achieve the beauty effect of tightening the skin and reducing wrinkles.
| Item | Parameters |
| Input voltage | 220 VAC |
| Input voltage frequency | 50Hz~60Hz |
| Output voltage | Max. 1700VAC |
| Output power | Max. 300W |
| Output frequency | 450K Hz |
| Output channel number | 2 |
| Working surroundings temperature | -20~45℃ |
| Working surroundings humidity | Relative humidity 10%~85% |
| Storage surroundings temperature | -20~85℃ |
| Storage surroundings humidity | Relative humidity 5%~85% |
| Cooling method | Air cooling |
| Insulation impedance | >20MΩ |
| Dimension(L*W*H) | 210mm x 168mm x 64mm |
| Weight | 1. 15kg |
| CE certification number | BSTXD190111169203SC BSTXD190111169204EC TST2018091300EC |
| PSE certification number | BTT20160708343SC-5 |
Product Features
1. AC220V&DC12V power input.
2. A handle with ceramic and metal heads and a negative circuit board.
3. Intelligent regulation of output voltage.
4. DB9 control input interface.
5. Equipped with power detection function.
6. Forced air cooling.
Paper box packaging, with product name, model, manufacturer’s quality department inspection certificate, manufacturing date and other information on the power supply body.
This packaging is suitable for transportation by car, ship, airplane, train, etc. During transportation, it should be rainproof and handled in a civilized manner.
