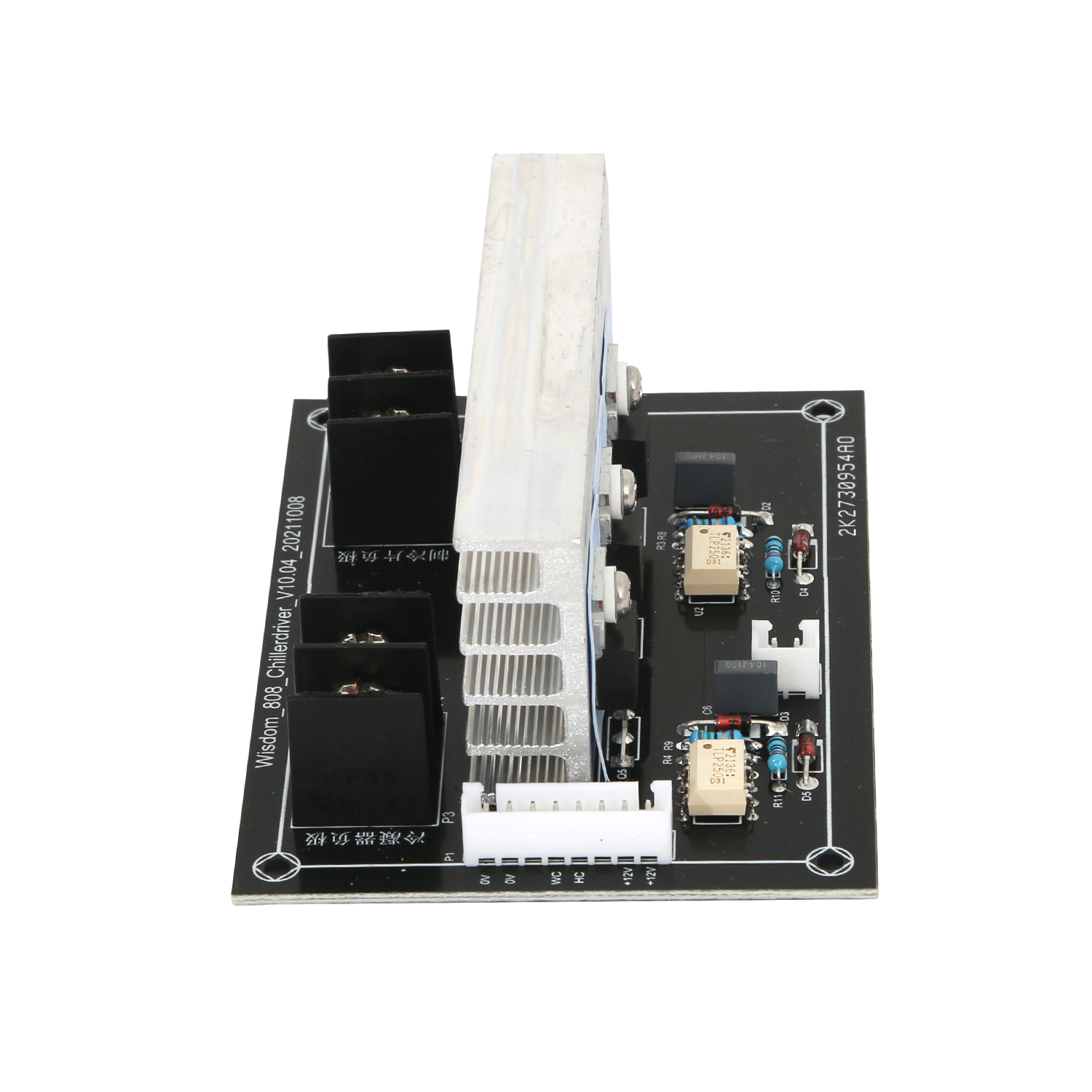

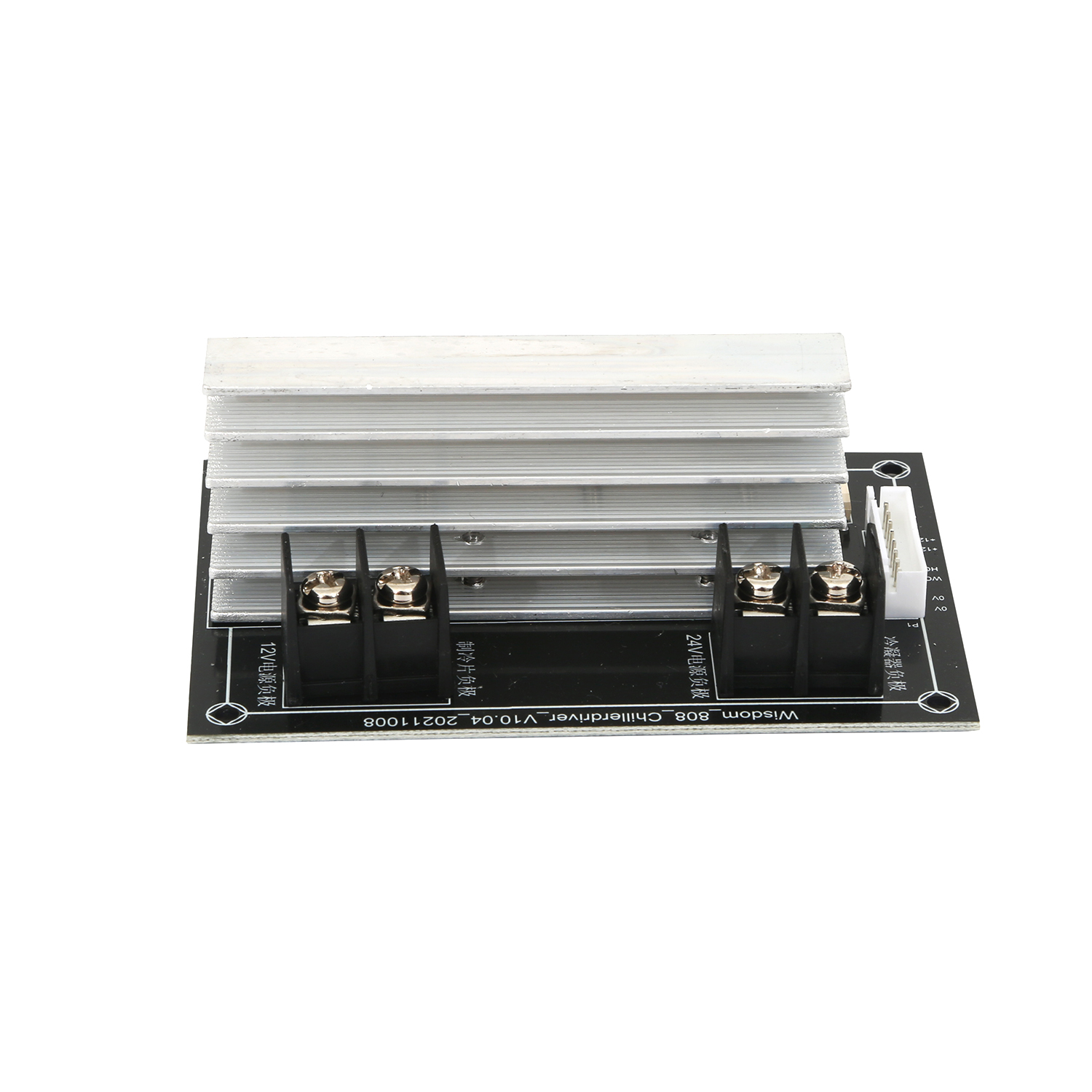

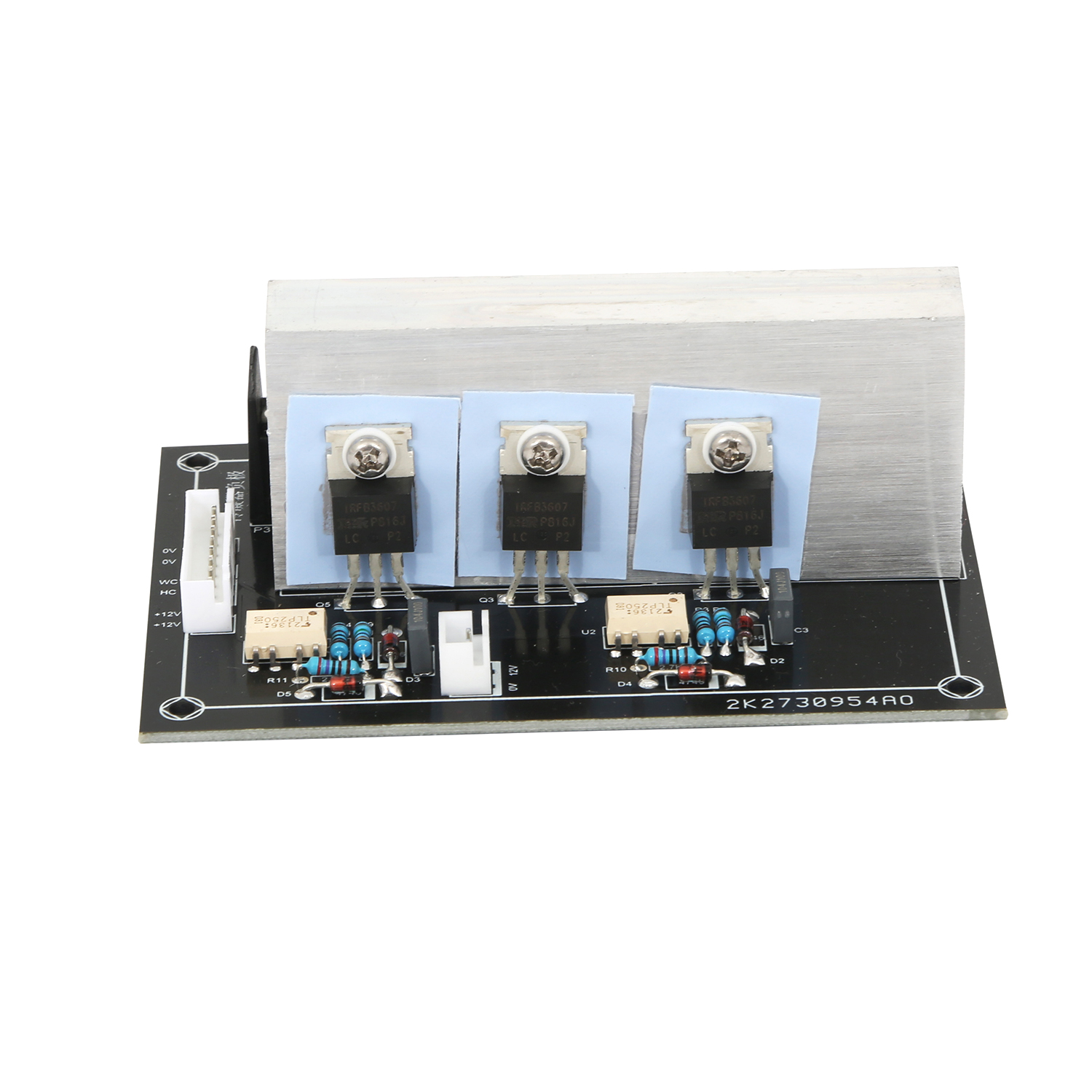

The Diode cooling driving board works with the diode laser controller, which cancontrol the diode laser handle refrigeration and condenser working, adjust therefrigeration intensity.
| Item | Parameters |
| Working voltage | 12VDC |
| Control voltage | MAX.100V |
| Control power | Condenser:MAX600W Handle refrigeration: MAX 300W |
| Control channel number | 2 |
| Fan voltage | 12VDC |
| Fan power | MAX 3W |
| Working surroundings temperature | -20~45℃ |
| Working surroundings humidity | Relative humidity≤85% |
| Cooling method | Air cooling |
| Dimension(L*W*H) | 100*70*38.6mm |
| Weight | 0.1kg |
Product Features
1.Used with diode laser controller.
2.Use the PWM control signal, respectively control the refrigeration intensity of thediode laser handle and the condenser.
3. It can drive a 3W/12VDC fan.
4.Simple wiring.
Paper box packaging, with product name, model, manufacturer’s quality department inspection certificate, manufacturing date and other information on the power supply body.
This packaging is suitable for transportation by car, ship, airplane, train, etc. During transportation, it should be rainproof and handled in a civilized manner.
