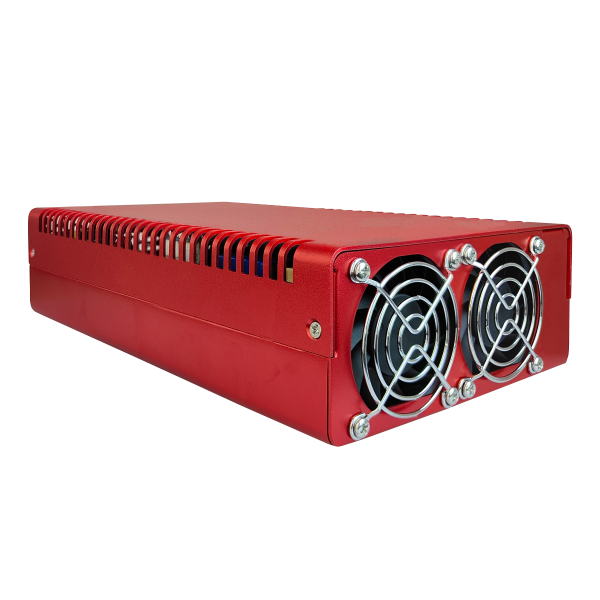

The 100A/32V diode laser power supply belongs to a constant current pulse output power supply, and the output voltage is automatically matched with a laser load (diode bars), combined with a diode laser handle to form a diode
laser system, can achieve painless and permanent hair removal beauty effects.
| project | parameter |
| Input voltage | G– 220VAC / W– 110VAC (±10%) |
| Input voltage frequency | 50Hz-60Hz |
| Output voltage | Max. 32VDC |
| Output current | 20-100A |
| Pre set current ① | 3.5-4.5A |
| Output power | Max. 3200W |
| Output ripple (100A output) | <1A @25 degree |
| Output rise time (100A output) | 820us |
| Output frequency | 1-10Hz |
| Adaptive laser bar quantity | 8-16 bars |
| Adapt laser power | 800-1600W |
| Output current duty cycle | Max. 20% |
| Temperature protection | 75 degree |
| Working environment temperature | -20-50 degree |
| Working environment humidity | Relative humidity 10%-85% |
| Storage environment temperature | -20-85 degree |
| Storage environment humidity | Relative humidity 5%-85% |
| Cooling method | Air cooling |
| Insulation impedance | >20MΩ |
| Dimensions (L/W/H) | 260.1/ 155/64.5mm |
| weight | 2.32kg |
| CE certification number | BSTXD190311180001SC BSTXD190311180001EC |
Product Features
1. Output load automatically matched.
2. Input control signal has 5V limit circuit.
3. Multi protections.
4. Preset current function (optional).
5. Voltage feedback and current feedback.
This packaging is suitable for transportation by car, ship, airplane, train, etc. During transportation, it should be rainproof and handled in a civilized manner.
This packaging is suitable for transportation by car, ship, airplane, train, etc. During transportation, it should be rainproof and handled in a civilized manner.
