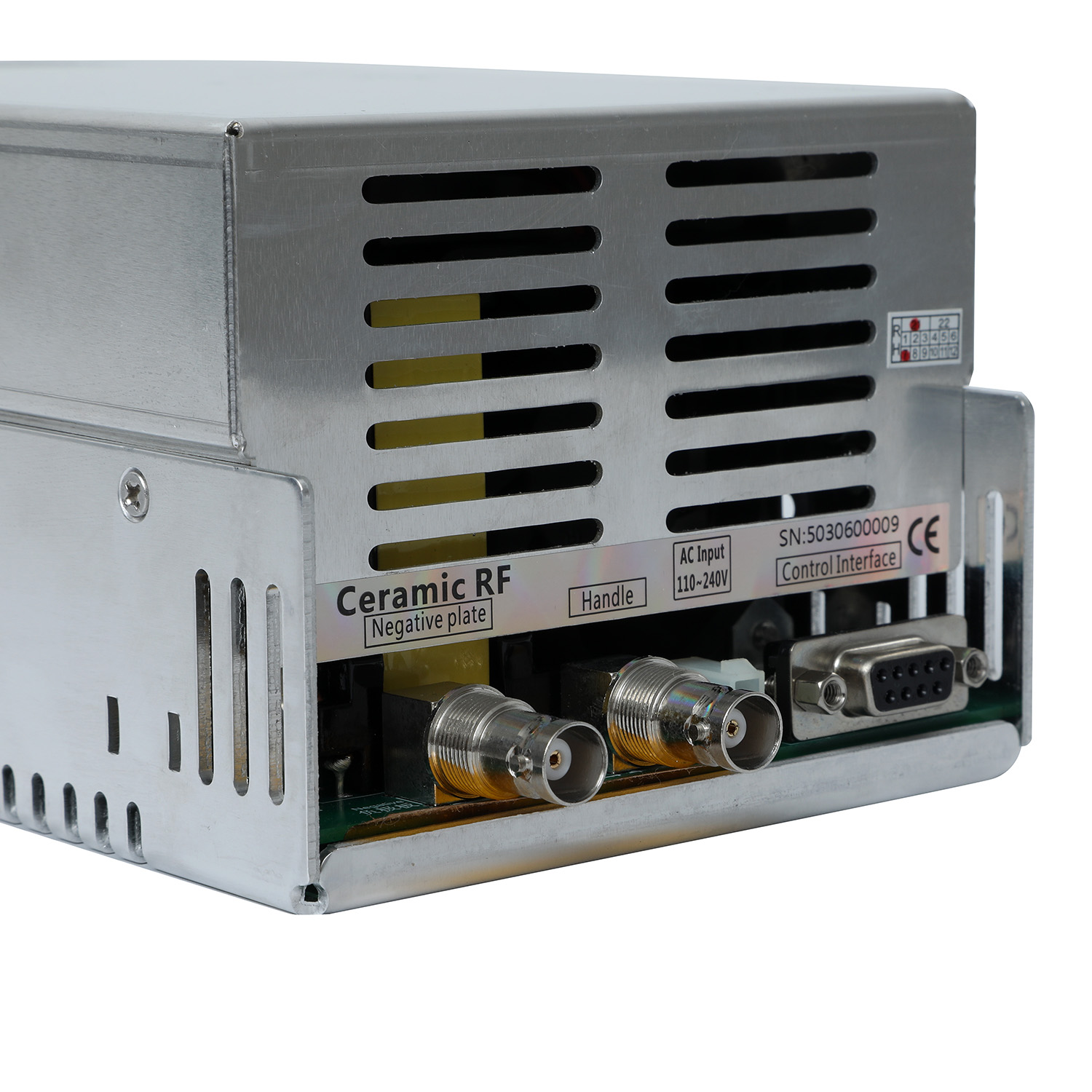

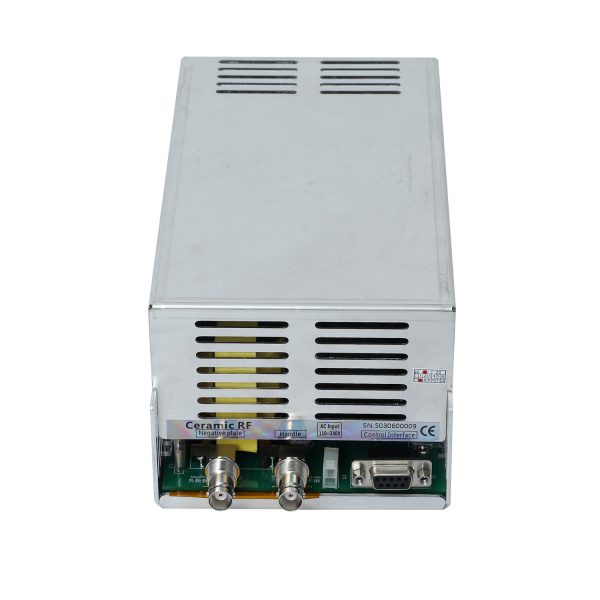

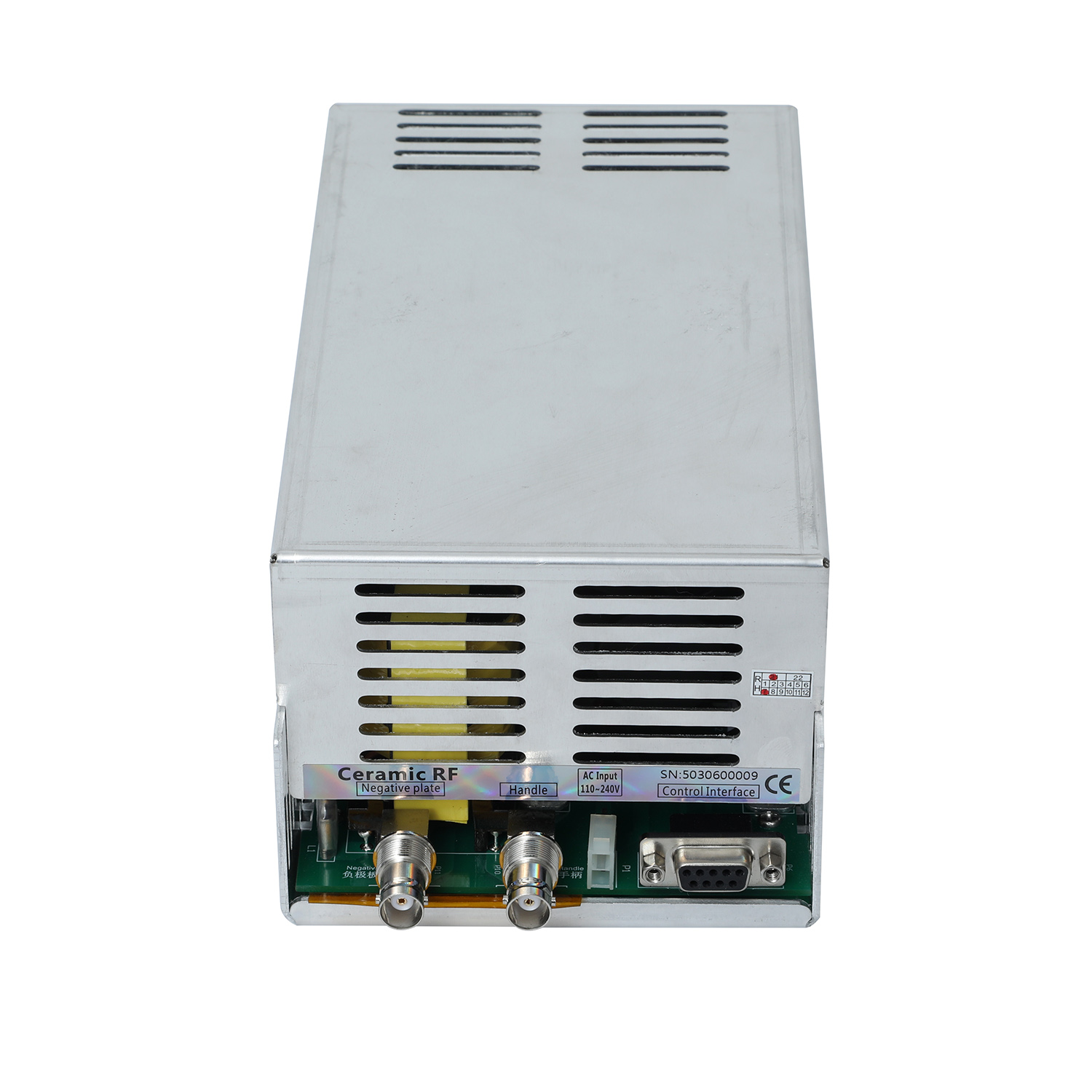

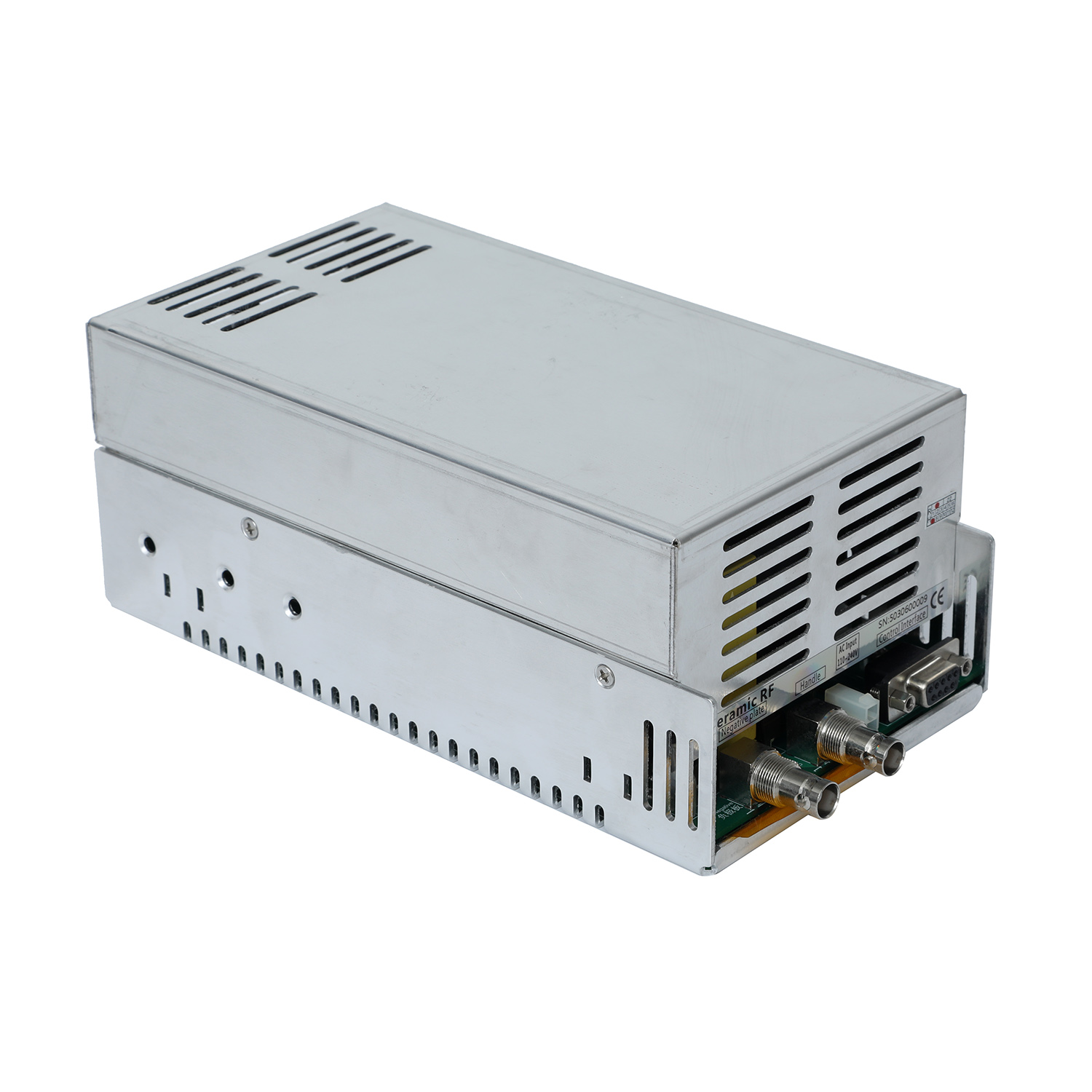

The Ceramic RF power supply is combined with a ceramic handle and a negative circuit board to form a RF beauty system, which can tighten the skin and reduce wrinkles.
| Item | Parameters |
| Input voltage | 100~275VAC |
| Inter voltage frequency | 50Hz~60Hz |
| Output voltage | Max. 1200VAC |
| Output power | Max. 100W |
| Output frequency | 450K Hz |
| Output channel number | 1 |
| Working surroundings temperature | -20~45℃ |
| Working surroundings humidity | Relative humidity 10%~85% |
| Storage surroundings temperature | -20~85℃ |
| Storage surroundings humidity | Relative humidity 5%~85% |
| Cooling method | Air cooling |
| Insulation impedance | >20MΩ |
| Dimension(L*W*H) | 230mm x 115mm x 89mm |
| Weight | 1.4kg |
| CE certification number | BSTXD190111169203SC BSTXD190111169204EC TST2018091300EC |
| PSE certification number | BTT20160708343SC-5 |
Product Features
1.Work with ceramic handle and negative circuit board.
2.Output voltage adjustable.
3.Standardized DB9 control inputinterface.
4.Standardized BNC output interface.
5.Over current protection.
Paper box packaging, with product name, model, manufacturer’s qualitydepartment inspection certificate, manufacturing date and other information on the power supply body.
This packaging is suitable for transportation by car, ship, airplane, train, etc. During transportation, it should be rainproof and handled in a civilized manner.
