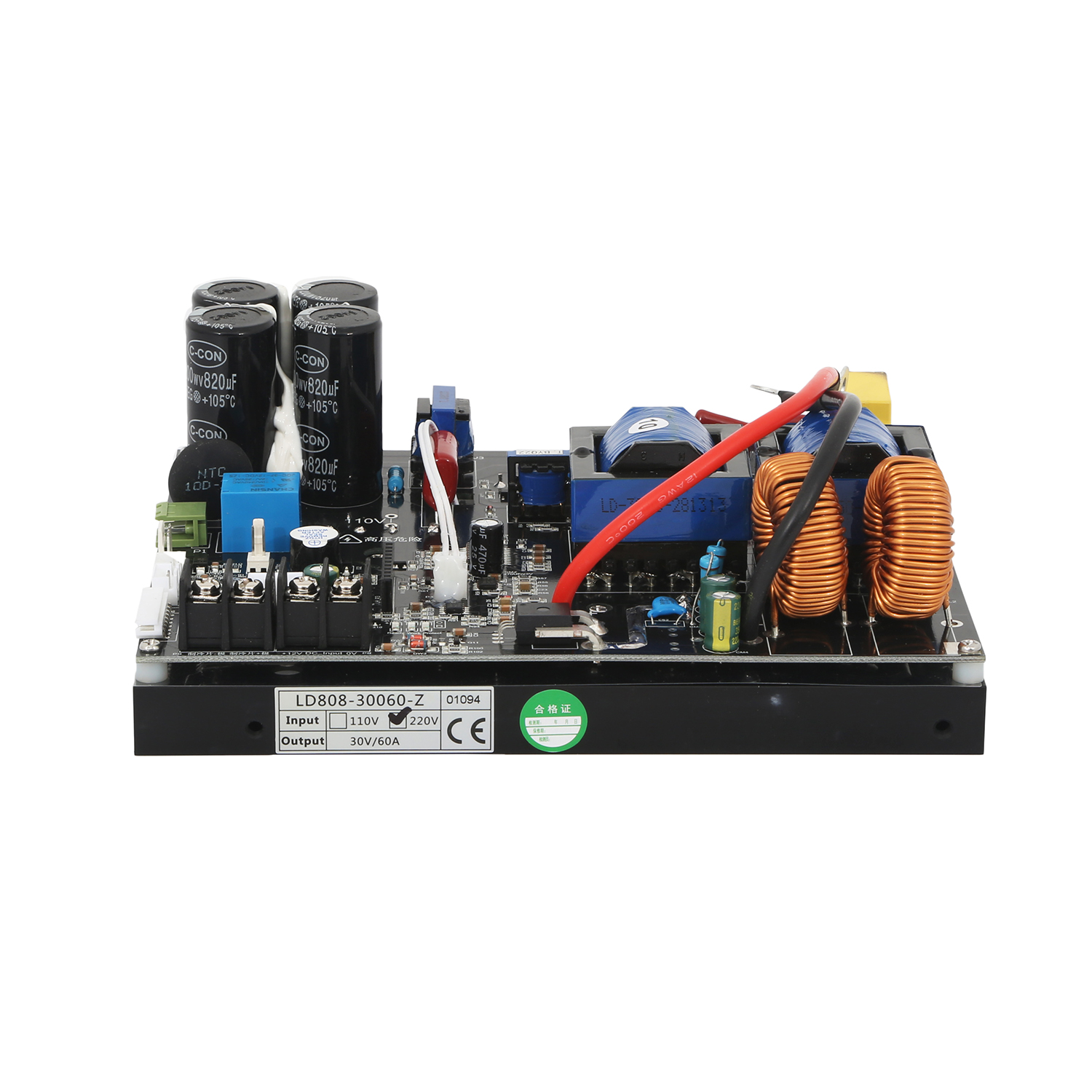

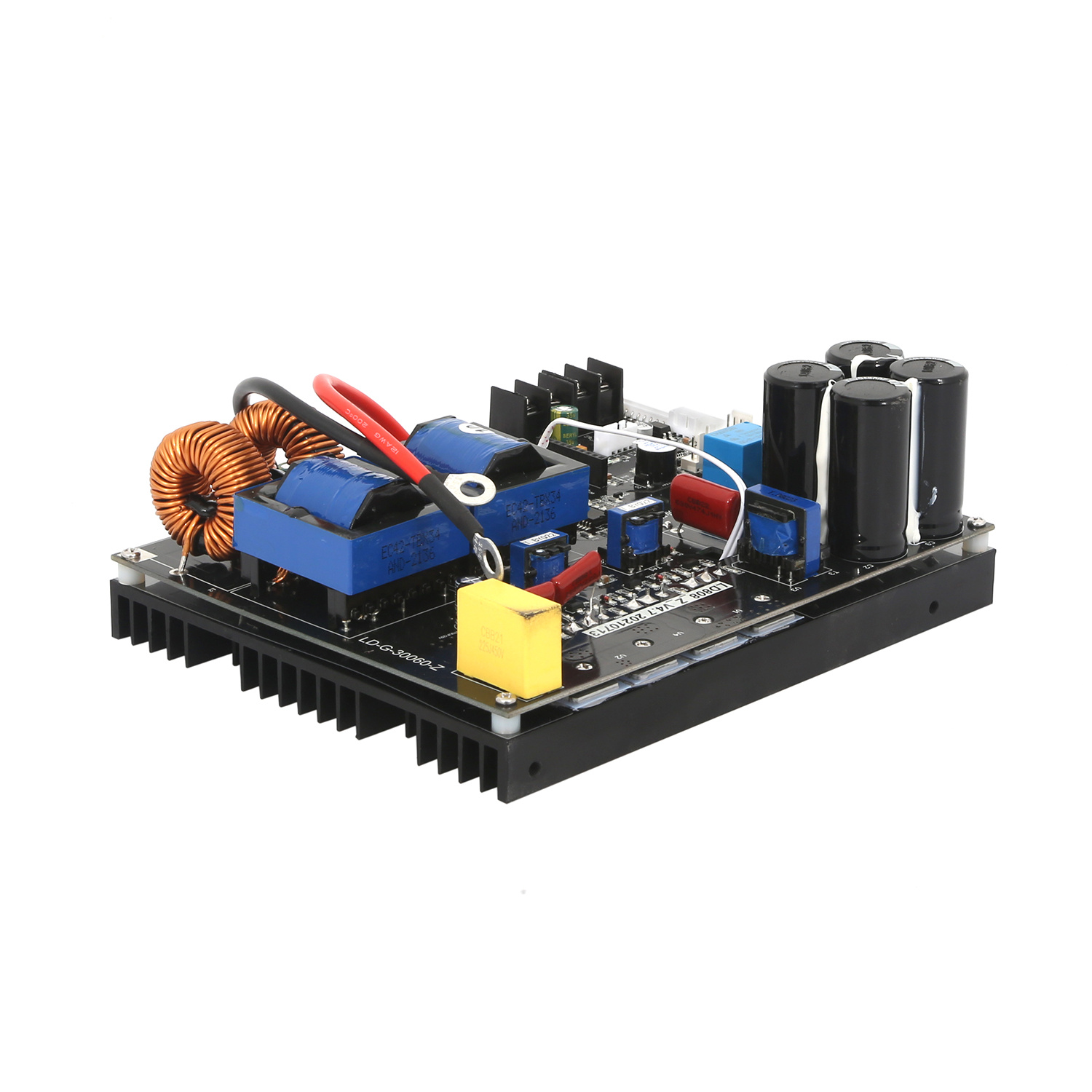

The 60A/30V diode power supply is a constant current pulse output power supply.Output voltage adaptive matching laser load (diode characteristics). It is combined with diode laser handle to form a diode laser system, which can realize the beauty effect of painless permanent hair removal.
| Item | Parameters |
| Input AC voltage | G–220VAC / W–110VAC (±10%) |
| Input AC frequency | 50Hz~60Hz |
| Input DC voltage | 12VDC |
| Input DC power | ≧ 150W |
| Output voltage | 5.9~30VDC |
| Output current | 0~60A |
| Output power | Max. 1800W |
| Output ripple (output 50A) | <0. 1A @25℃ |
| Output rise time (output 50A) ① | ≦4ms |
| Output frequency | 1~ 10Hz |
| Bar number | 3~ 15 |
| Laser power according to bars | 180~800W |
| Output current duty cycle | Max. 40% |
| Over-voltage protection | 34A (Automatic recovery) |
| Over-current protection | 53A (Automatic recovery) |
| Temperature protection | 65℃ |
| Working surroundings temperature | -20~50℃ |
| Working surroundings humidity | Relative humidity 10%~85% |
| Storage surroundings temperature | -20~85℃ |
| Storage surroundings humidity | Relative humidity 5%~85% |
| Cooling method | Air cooling |
| Insulation impedance | >20MΩ |
| Dimension(L*W*H) | 192mm x 152mm x 72mm |
| Weight | 1.4kg |
| CE certification number | BSTXD190311180001SC BSTXD190311180001EC |

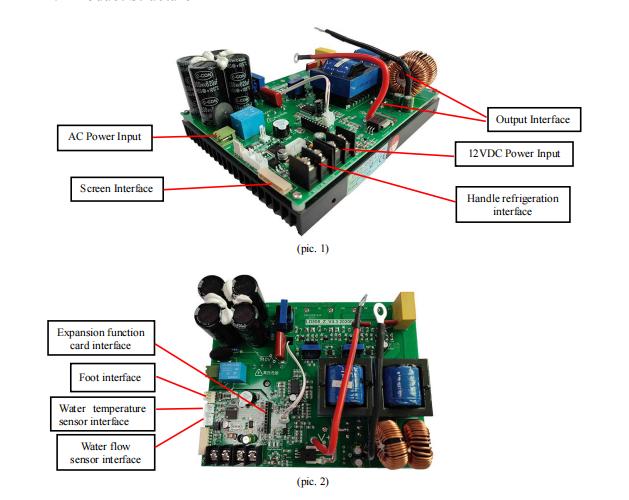

Product Features
1.Integrated control module, noneed for external control board.
2.Integrated refrigeration drive module.
3.One expansion function card can be inserted to control thelaser powersupply or RF power supply.
4.Over-voltage protection, Over-current protection and high temperature protection.
Paper box packaging, with product name, model, manufacturer’s quality department inspection certificate, manufacturing date and other information on the power supply body.
This packaging is suitable for transportation by car, ship, airplane, train, etc. During transportation, it should be rainproof and handled in a civilized manner.
