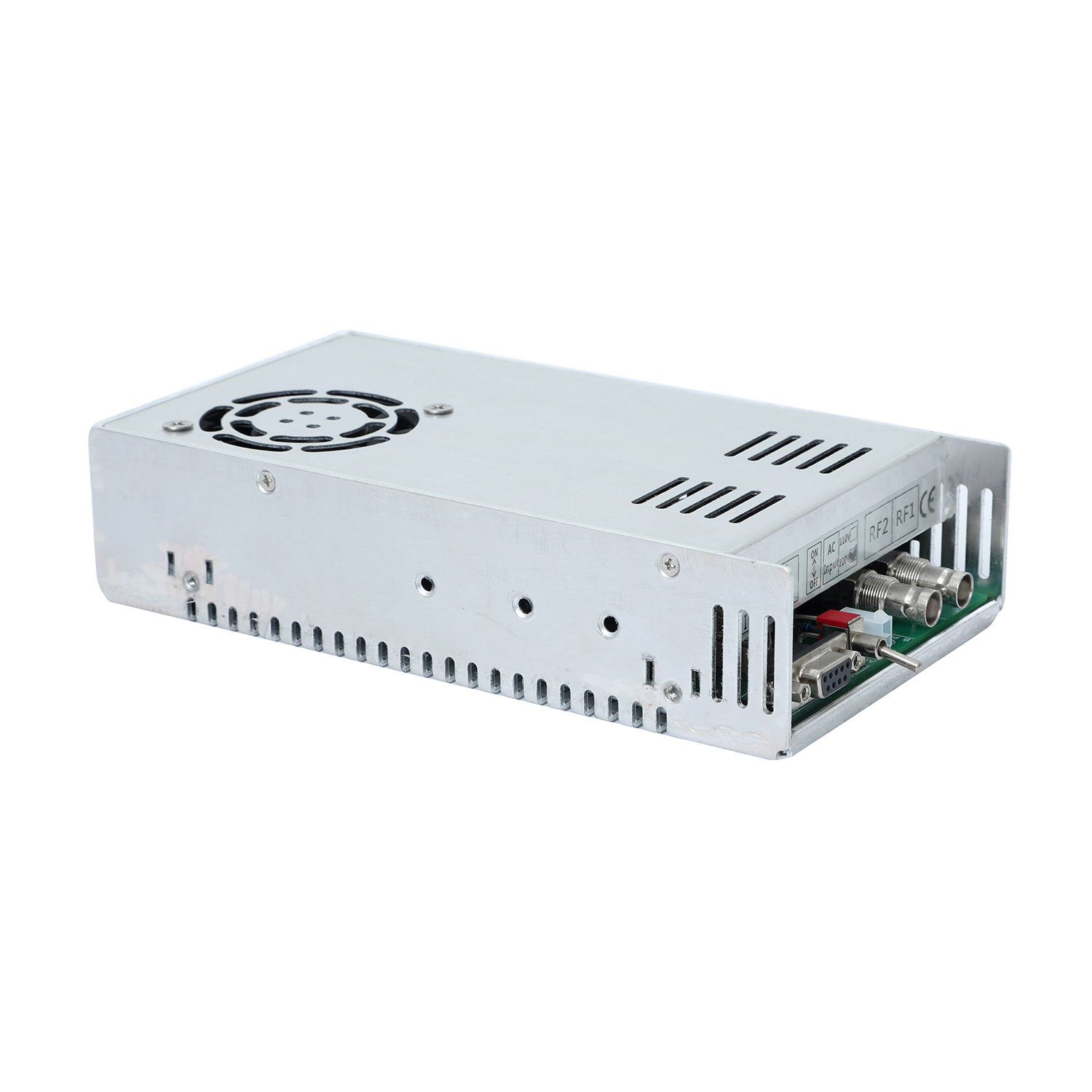

The 5M RF power supply and RF handle form a RF beauty system, which can tighten the skin and reduce wrinkles.
| Item | Parameters |
| Input voltage | G–220VAC / W–110VAC (±10%) |
| Inter voltage frequency | 50Hz~60Hz |
| Output voltage | Max. 280VAC |
| Output power | Max. 50W |
| Output frequency | 5M Hz |
| Output channel number | 2 |
| Working surroundings temperature | -20~45℃ |
| Working surroundings humidity | Relative humidity 10%~85% |
| Storage surroundings temperature | -20~85℃ |
| Storage surroundings humidity | Relative humidity 5%~85% |
| Cooling method | Air cooling |
| Insulation impedance | >20MΩ |
| Dimension(L*W*H) | 228mm x 115mm x 50mm |
| Weight | 0.7kg |
| CE certification number | BSTXD190111169203SC BSTXD190111169204EC TST2018091300EC |
| PSE certification number | BTT20160708343SC-5 |
Product Features

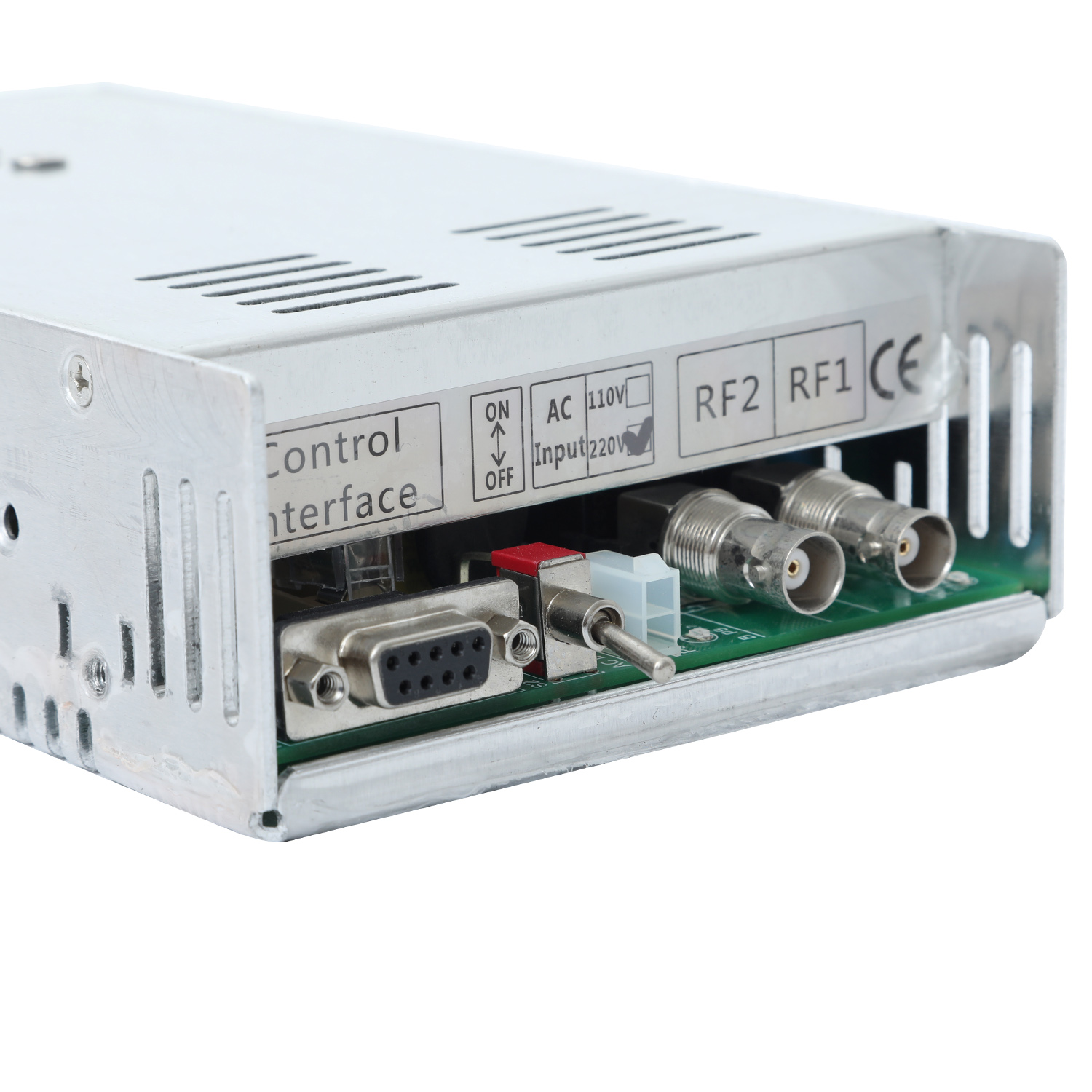

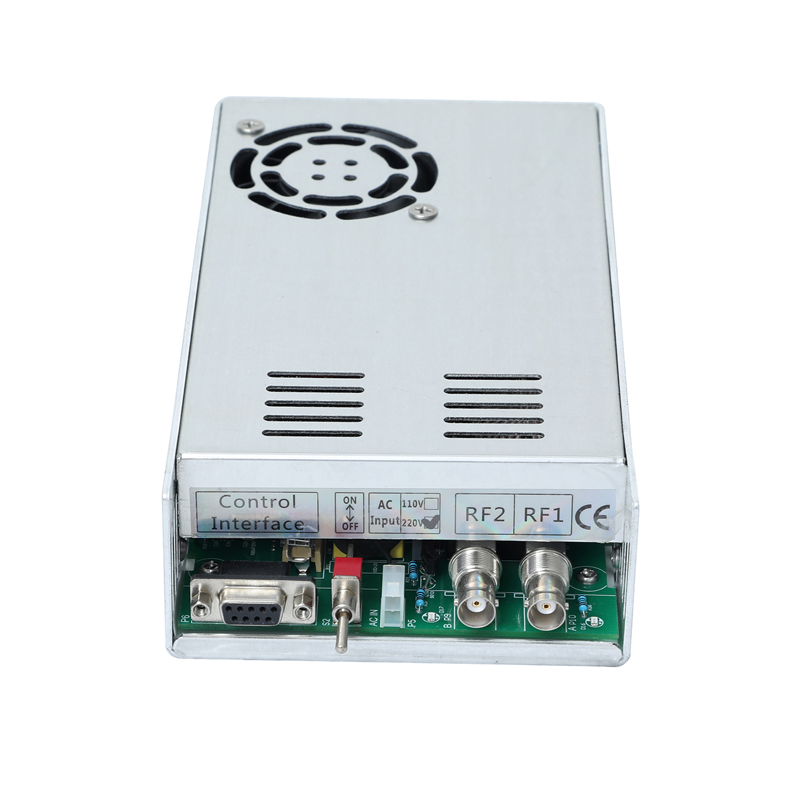

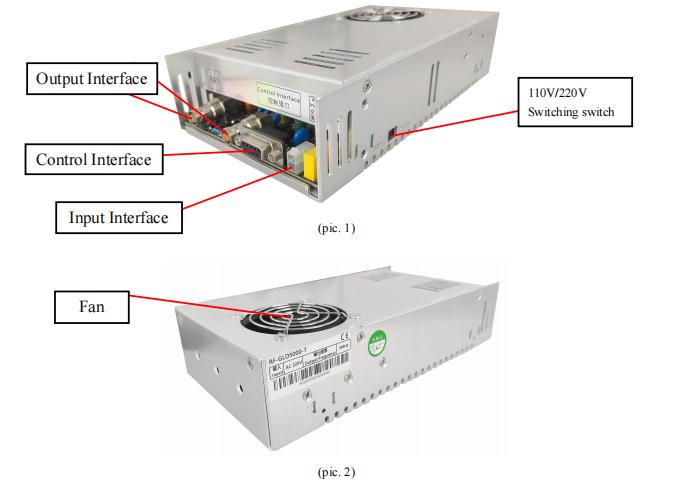

1.Dual channel switchingoutput.
2. AC220/110V power input, manually switch with toggle switch.
3.DB9 control input interface.
4.BNC output interface.
5. Forced air cooling.
Paper box packaging, with product name, model, manufacturer’s quality department inspection certificate, manufacturing date and other information on the power supply body.
This packaging is suitable for transportation by car, ship, airplane, train, etc. During transportation, it should be rainproof and handled in a civilized manner.
