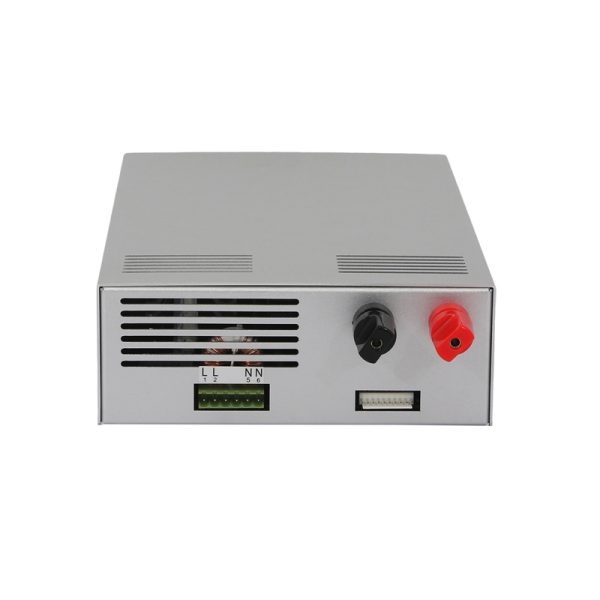

The 50A/24V diode power supply is a constant current pulse output power supply.Output voltage adaptive matching laser load (diode characteristics). It is combined with diode laser handle to form a diode laser system, which can realize the beauty effect of painless permanent hair removal.
| Item | Parameters |
| Input voltage | G–220VAC / W–110VAC (±10%) |
| Inter voltage frequency | 50Hz~60Hz |
| Output voltage | 7.6~40VDC |
| Output current | 0~50A |
| Output power | Max. 2000W |
| Output ripple (output 50A) | <0.1A @25℃ |
| Output rise time (output 50A) | ≤4ms |
| Output frequency | 1~ 10Hz |
| Bar number | 4~ 20 |
| Laser power according to bars | 200~1000W |
| Output current duty cycle | Max. 40% |
| Over-voltage protection | 53V(Automatic recovery) |
| Temperature protection | 65℃ |
| Working surroundings temperature | -20~50℃ |
| Working surroundings humidity | Relative humidity 10%~85% |
| Storage surroundings temperature | -20~85℃ |
| Storage surroundings humidity | Relative humidity 5%~85% |
| Cooling method | Air cooling |
| Insulation impedance | >20MΩ |
| Dimension(L*W*H) | 322mm x 183mm x 68mm |
| Weight | 2.7kg |
| CE certification number | BSTXD190311180001SC BSTXD190311180001EC |
Product Features
1.The working control signal can be customized as high level or low level.
2.Input control signal has 5V limit circuit.
3.Multi protections.
