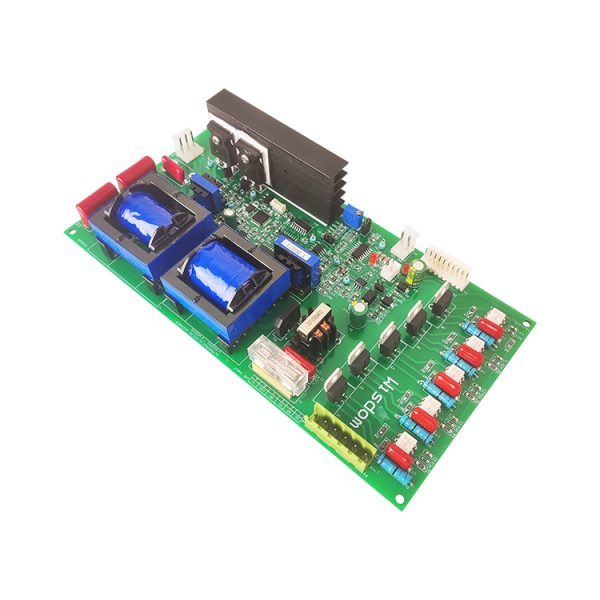

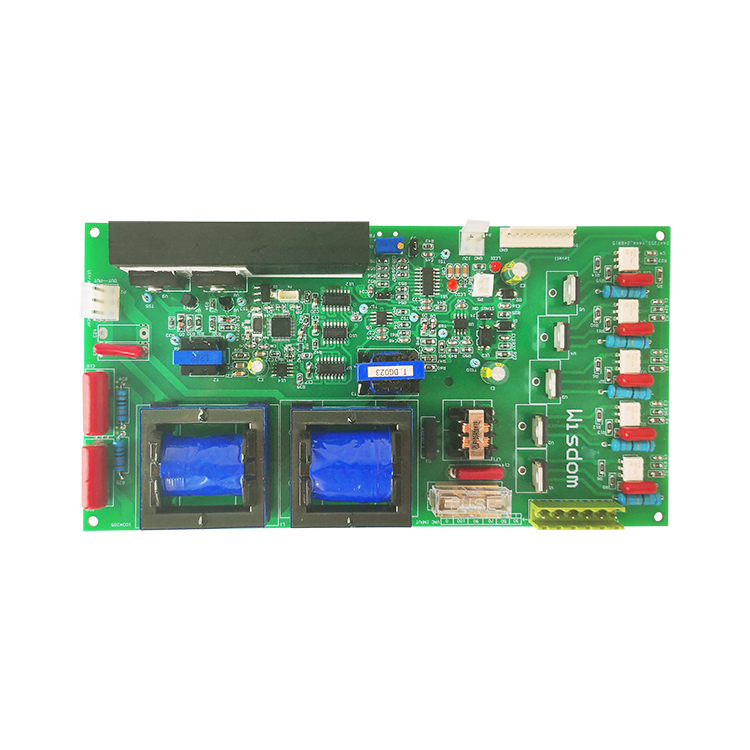

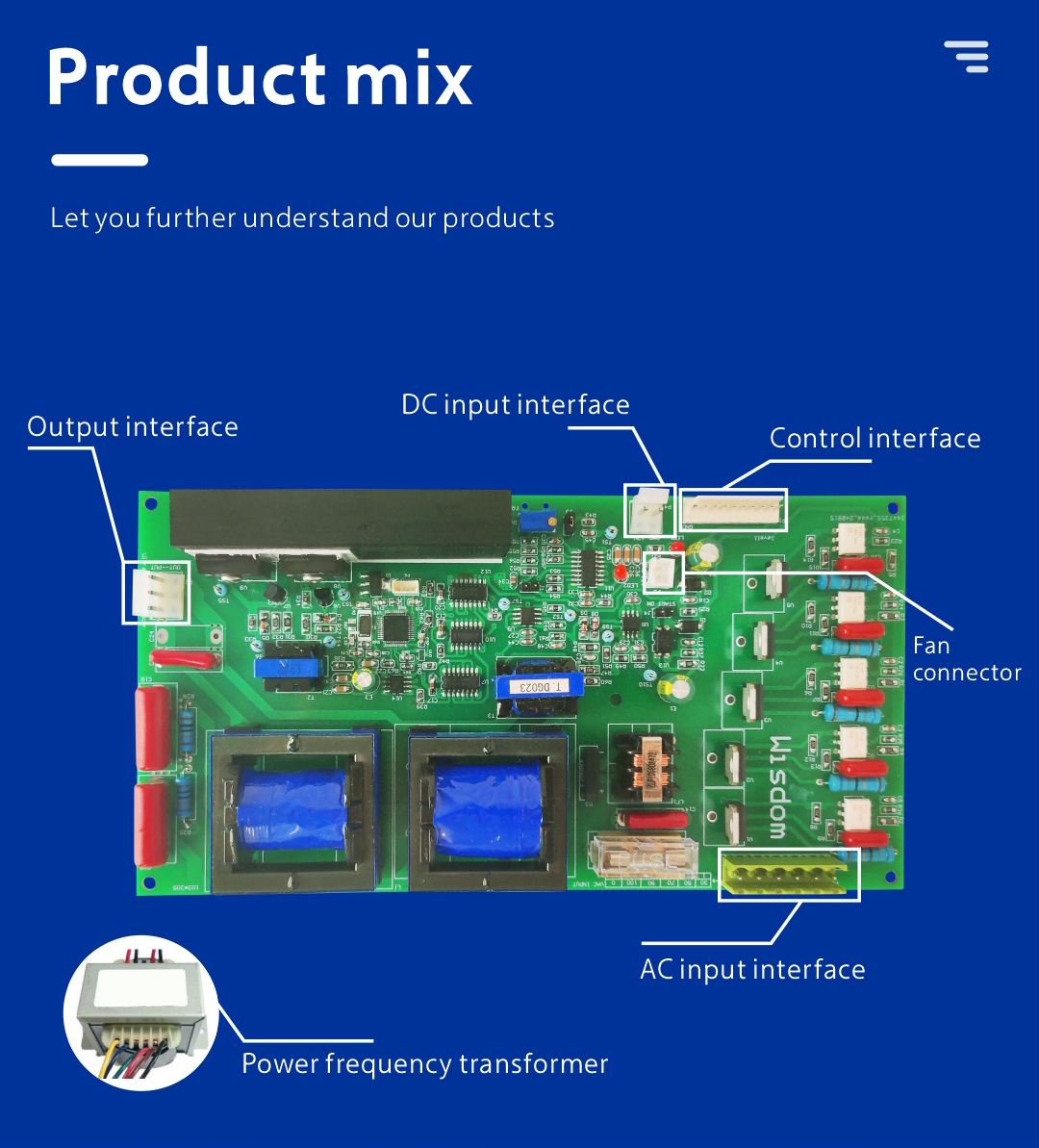

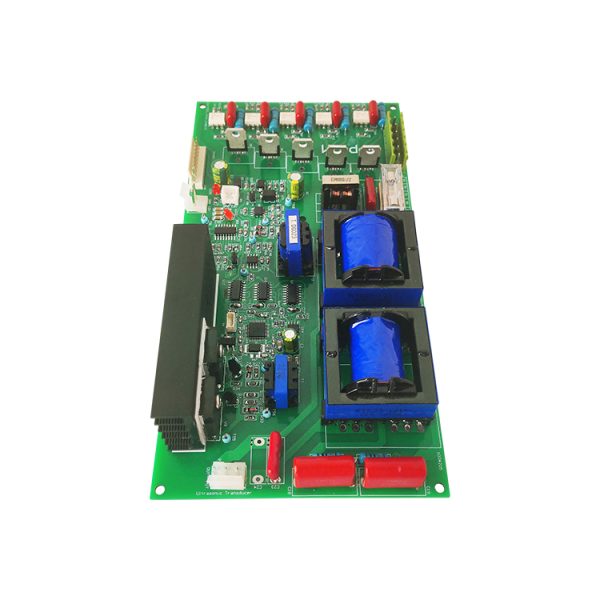

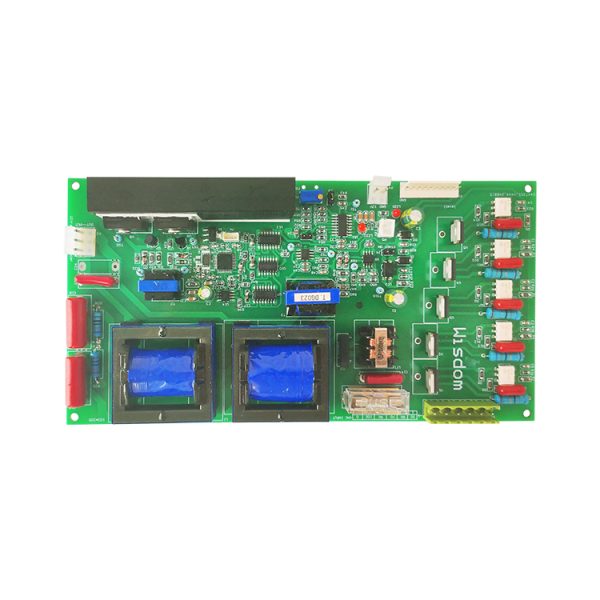

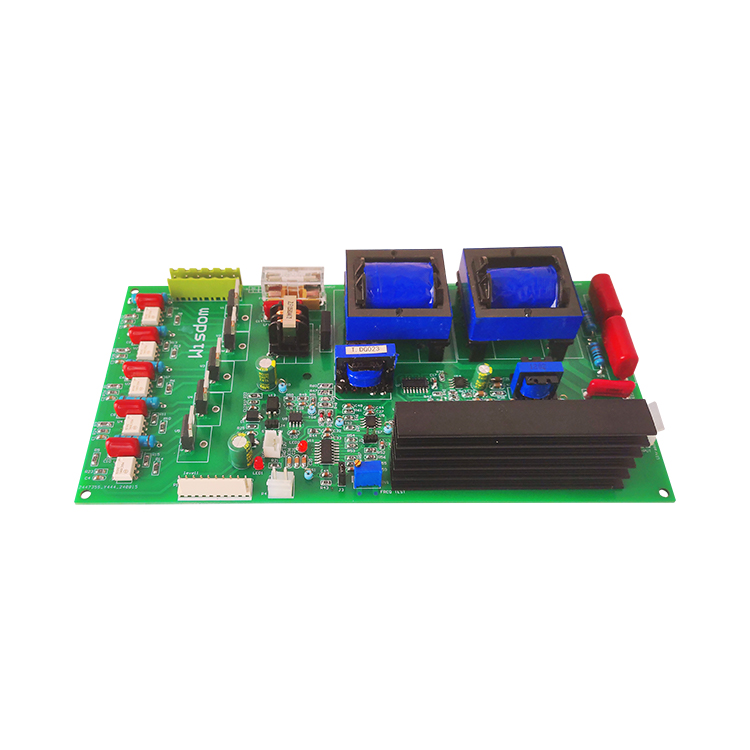

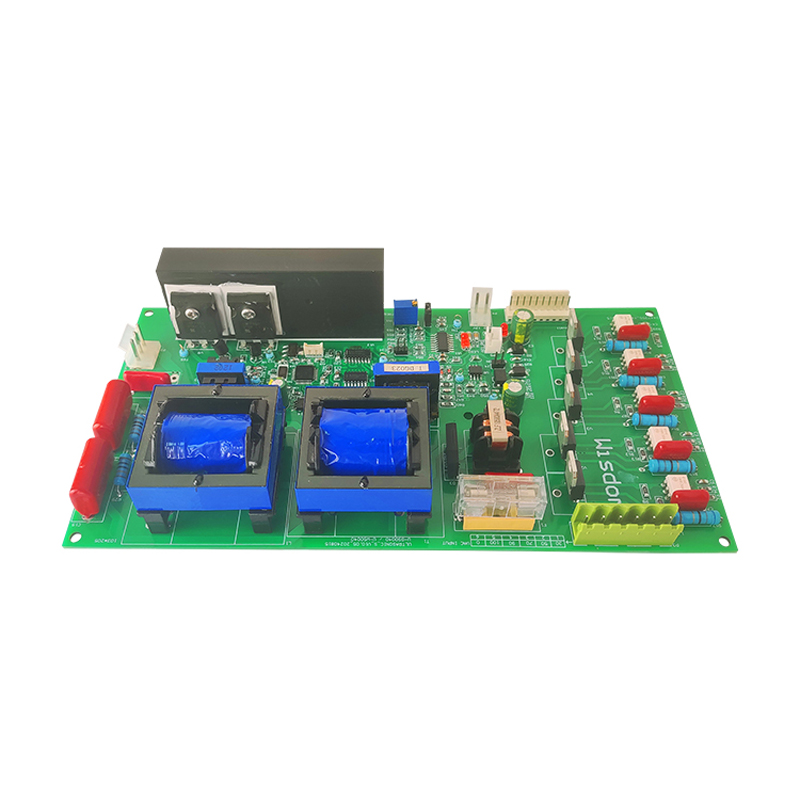

The 40KHz ultrasonic power supply is matched with an ultrasonic transducer to form anultrasonic beauty system, which can realize the beauty effect of cellulite and weight loss.
| Item | Parameters |
| AC Input voltage | G–220VAC (±10%) |
| Inter voltage frequency | 50Hz~60Hz |
| DC Input voltage | 12VDC / 25W |
| Output voltage | 30/50/70/90/100 VAC |
| Output power | Max. 120W |
| Output frequency | 42KHz~55KHz |
| Output channel number | 1 |
| Working surroundings temperature | -20~45℃ |
| Working surroundings humidity | Relative humidity 10%~85% |
| Storage surroundings temperature | -20~85℃ |
| Storage surroundings humidity | Relative humidity 5%~85% |
| Cooling method | Air cooling |
| Insulation impedance | >20MΩ |
| Power board dimension(L*W*H) | 212mm * 110mm * 40mm |
| Power board weight | 0.4kg |
| Transformer dimension(L*W*H) | 94mm * 66mm * 58mm |
| Transformer board weight | 1kg |
Paper box packaging, with product name, model, manufacturer’s quality department inspection certificate, manufacturing date and other information on the power supply body.
This packaging is suitable for transportation by car, ship, airplane, train, etc. During transportation, it should be rainproof and handled in a civilized manner.
