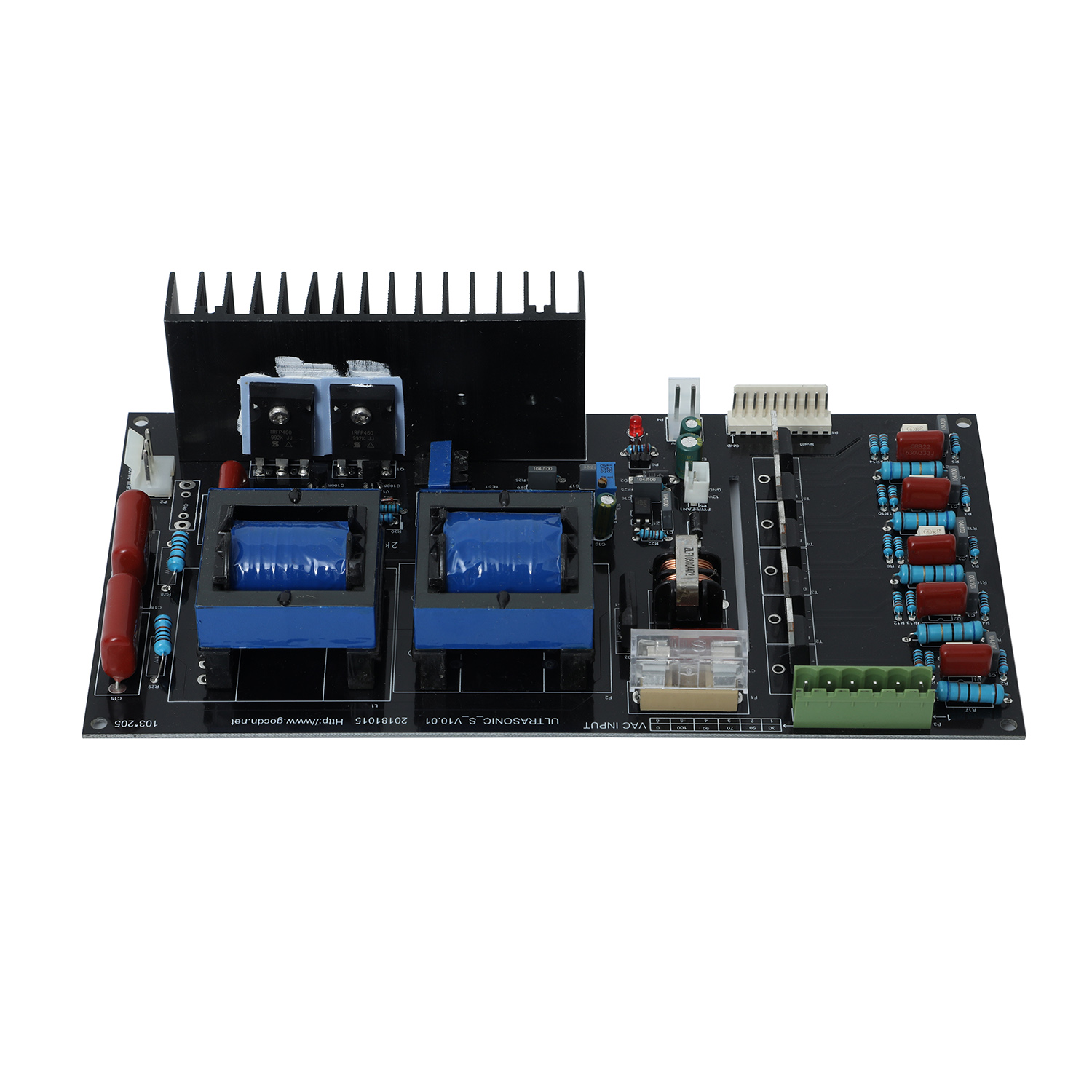

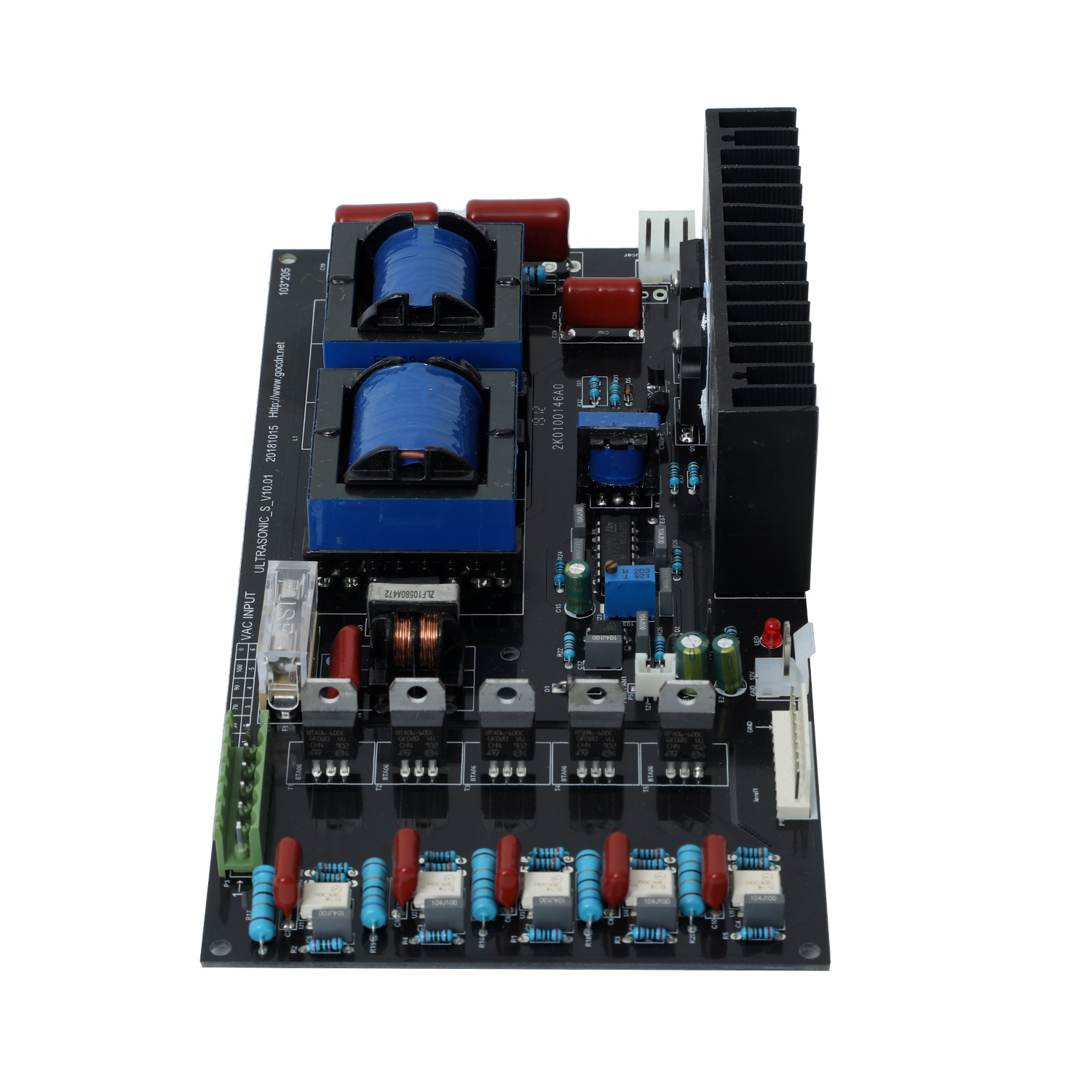

40KHz Ultrasonic Fat Dissolving Power Board is suitable for cosmetic effects such as ultrasonic fat dissolving. The Power Board has super stable circuit structure adjustable digital frequency automatic lock and other functions and is suitable for whole body weight loss and fat dissolving. Therefore it is often combined with E light RF and laser to make a multifunctional all-in-one machine.
| Item | Parameters |
| AC Input voltage | G–220VAC / W–110VAC (±10%) |
| Inter voltage frequency | 50Hz~60Hz |
| DC Input voltage | 12VDC / 25W |
| Output voltage | 30/50/70/90/100 VAC |
| Output power | Max. 100W |
| Output frequency | 40K~50K Hz adjustable |
| Output channel number | 1 |
| Working surroundings temperature | -20~45℃ |
| Working surroundings humidity | Relative humidity 10%~85% |
| Storage surroundings temperature | -20~85℃ |
| Storage surroundings humidity | Relative humidity 5%~85% |
| Cooling method | Air cooling |
| Insulation impedance | >20MΩ |
| Power board dimension(L*W*H) | 212mm * 110mm * 40mm |
| Power board weight | 0.4kg |
| Transformer dimension(L*W*H) | 94mm * 66mm * 58mm |
| Transformer board weight | 1kg |
Paper box packaging, with product name, model, manufacturer’s quality department inspection certificate, manufacturing date and other information on the power supply body.
This packaging is suitable for transportation by car, ship, airplane, train, etc. During transportation, it should be rainproof and handled in a civilized manner.
