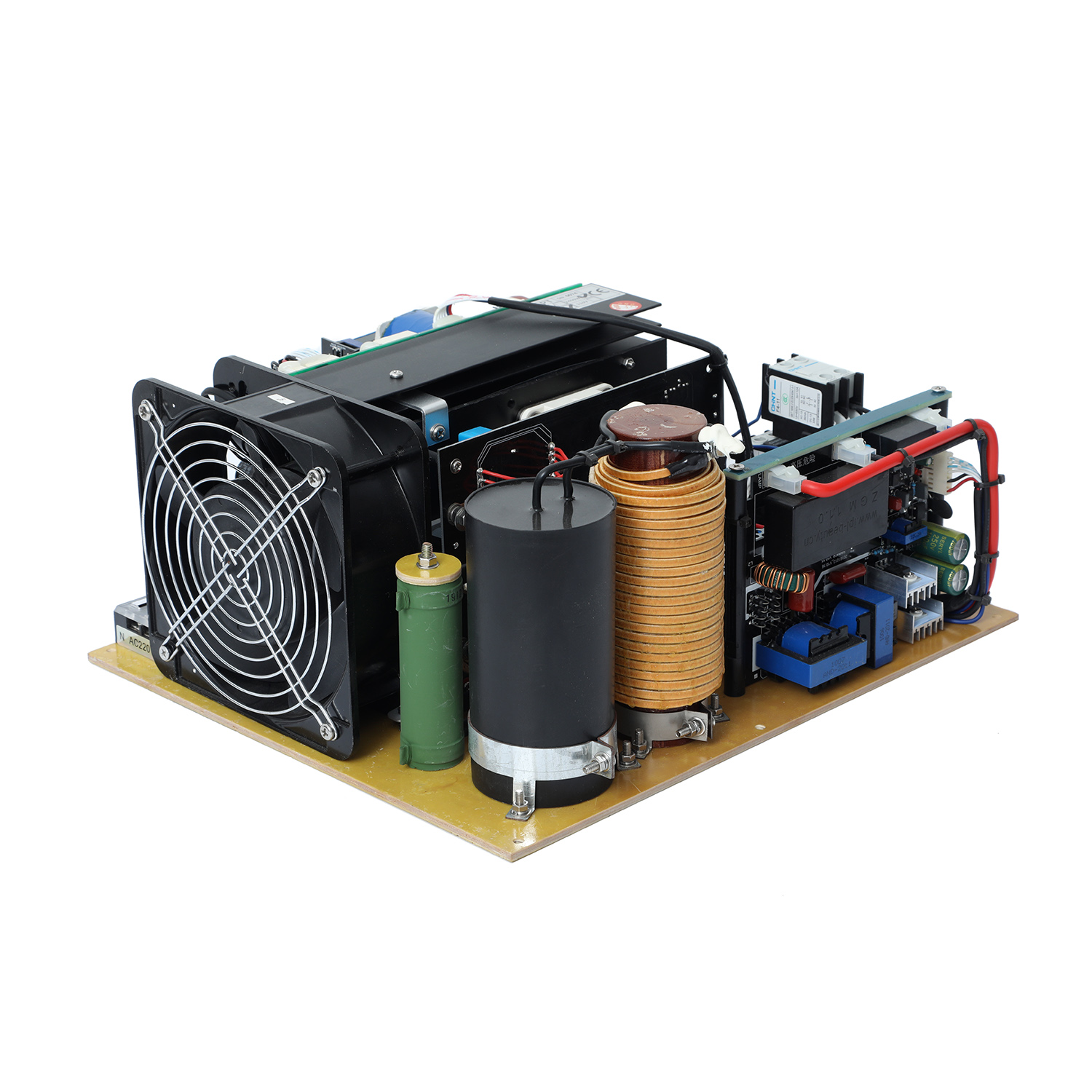

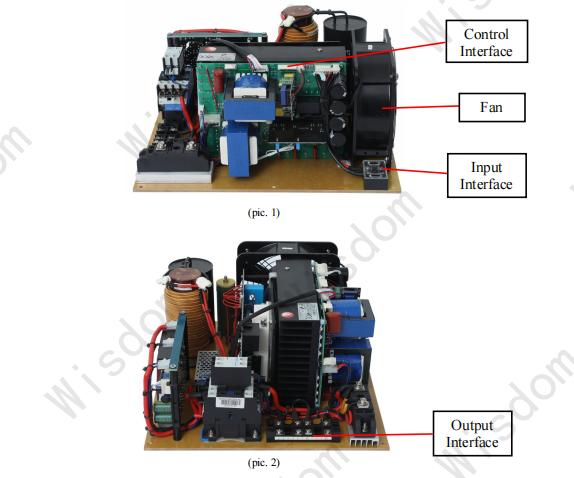

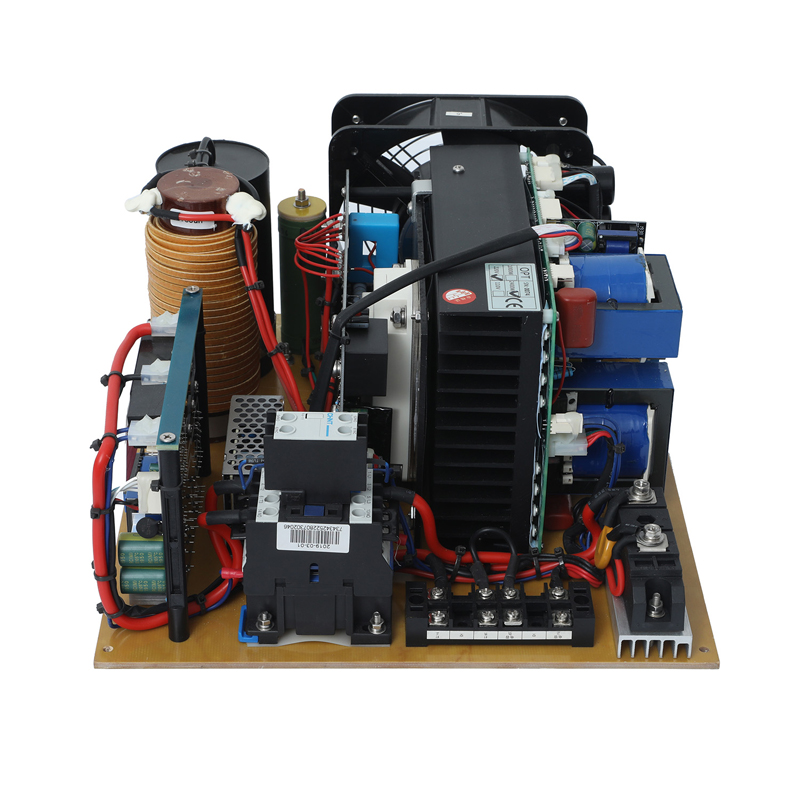

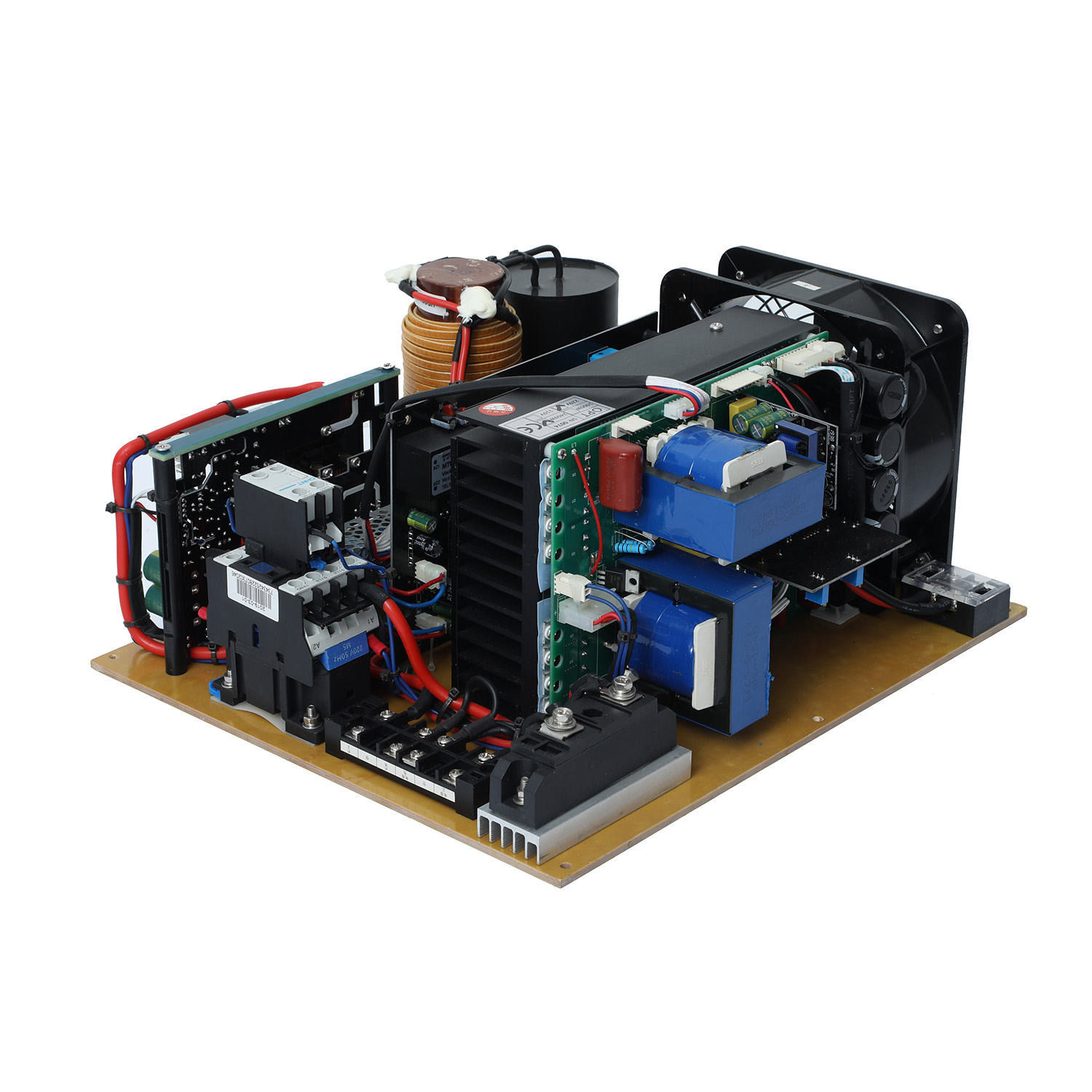

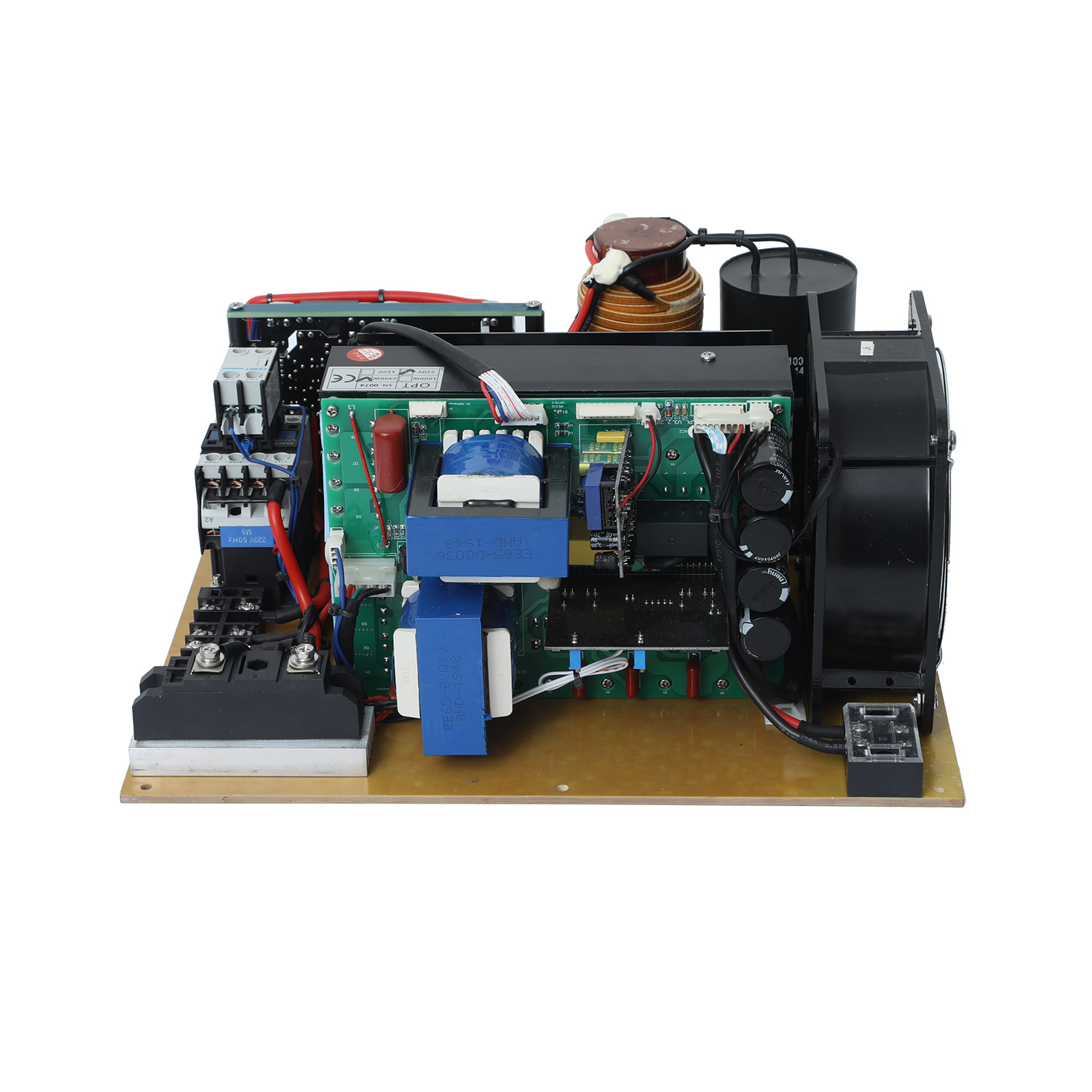

The 2400W OPT power supply is suitable for driving xenon lamps. With E-Light handle, it can achieve hair removal, skin rejuvenation and other beauty effects.
| Item | Parameters |
| Input voltage | G–220VAC / W–110VAC (±10%) |
| Inter voltage frequency | 50Hz~60Hz |
| Output voltage | Max. 600VDC |
| Output peak current (Based on xenon lamp) | 0~260A adjustable |
| Output power | Max. 2400W |
| Output frequency | 1~ 10Hz adjustable |
| Temperature protection | 65℃ |
| Working surroundings temperature | -20~50℃ |
| Working surroundings humidity | Relative humidity 10%~85% |
| Storage surroundings temperature | -20~85℃ |
| Storage surroundings humidity | Relative humidity 5%~85% |
| Cooling method | Air cooling |
| Insulation impedance | >20MΩ |
| Dimension(L*W*H) | 350mm x 300mm x 157mm |
| Weight | 9. 15kg |
| CE certification number | BSTDG190111169201SC BSTDG190111169201EC BSTXD190612868001SC BSTXD190612868001EC |
Product Features
1.Full-Bridge charging circuit.
2.Constant current pulse output, output current is controllable and adjustable.
3.Strong IGBT discharge circuit.
4.Patented pre-ignition circuit make lamp longer lifetime.
5.High working frequency and protection circuit make product efficient and stable.
6.Drive circuit independent design, simple wiring, safe and convenient..
7.Using integrated IGBT module, better compatibility with xenon lamps with arc length less than 50mm.
Paper box packaging, with product name, model, manufacturer’s quality department inspection certificate, manufacturing date and other information on the power supply body.
This packaging is suitable for transportation by car, ship, airplane, train, etc. During transportation, it should be rainproof and handled in a civilized manner.
