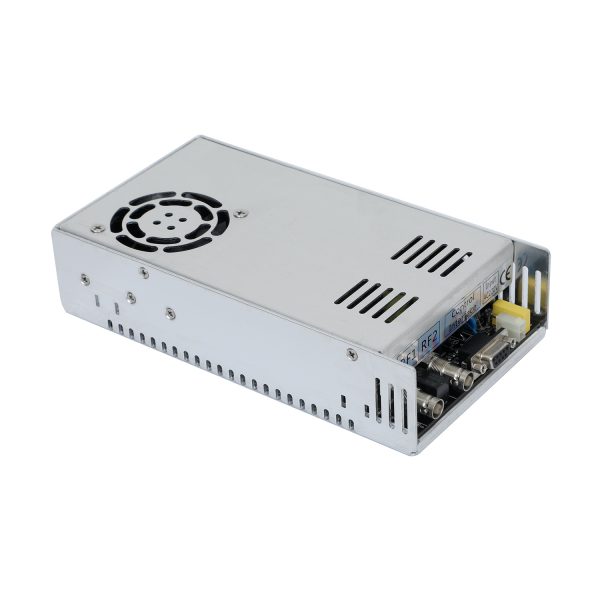

RF power supply is used for RF skin treatment and beauty, which acts on skin tissue through high-frequency electric fields, promotes collagen production, and tightens the skin.
| Item | Parameters |
| Input voltage | G–220VAC/W–110VAC(±10%) |
| Inter voltage frequency | 50Hz~60Hz |
| Output voltage | Max.400VAC |
| Output power | Max.100W |
| Output frequency | 1M & 2M Hz |
| Output channel number | 2 |
| Working surroundings temperature | -20~45℃ |
| Working surroundings humidity | Relative humidity 10%~85% |
| Storage surroundings temperature | -20-85°C |
| Storage surroundings humidity | Relative humidity 5%~85% |
| Cooling method | Air cooling |
| Insulation impedance | >20MΩ |
| Dimension(L*W*H) | 215mm x117mm x 50mm |
| Weight | 1kg |
| CE certification number | BSTXD190111169203SC BSTXD190111169204EC TST2018091300EC |
| PSE certification number | BTT20160708343SC-5 |
Product Features
1. Dual frequency 1M & 2M Hz switching output.
2. Dual channel switching output.

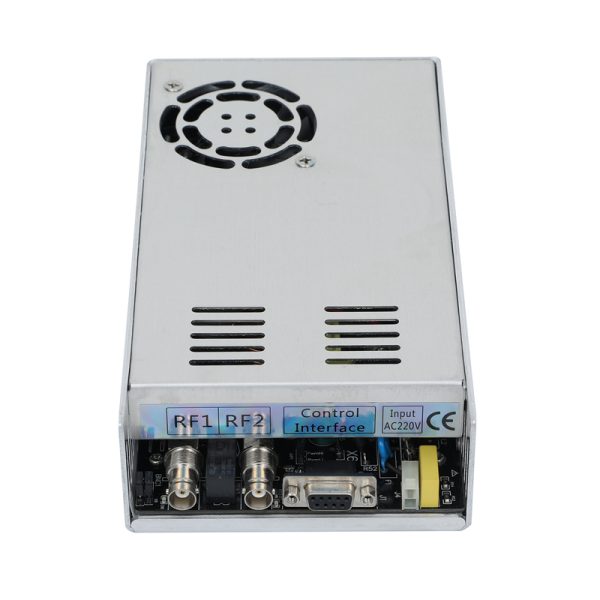

3. Standardized DB9 control input interface.
4. Standardized BNC output interface.
5. Output voltage adjustable.
6. Multiple protections.
7. Forced air cooling.
Paper box packaging, with product name, model, manufacturer’s quality department inspection certificate, manufacturing date and other information on the power supply body.
This packaging is suitable for transportation by car, ship, airplane, train, etc. During transportation, it should be rainproof and handled in a civilized manner.
