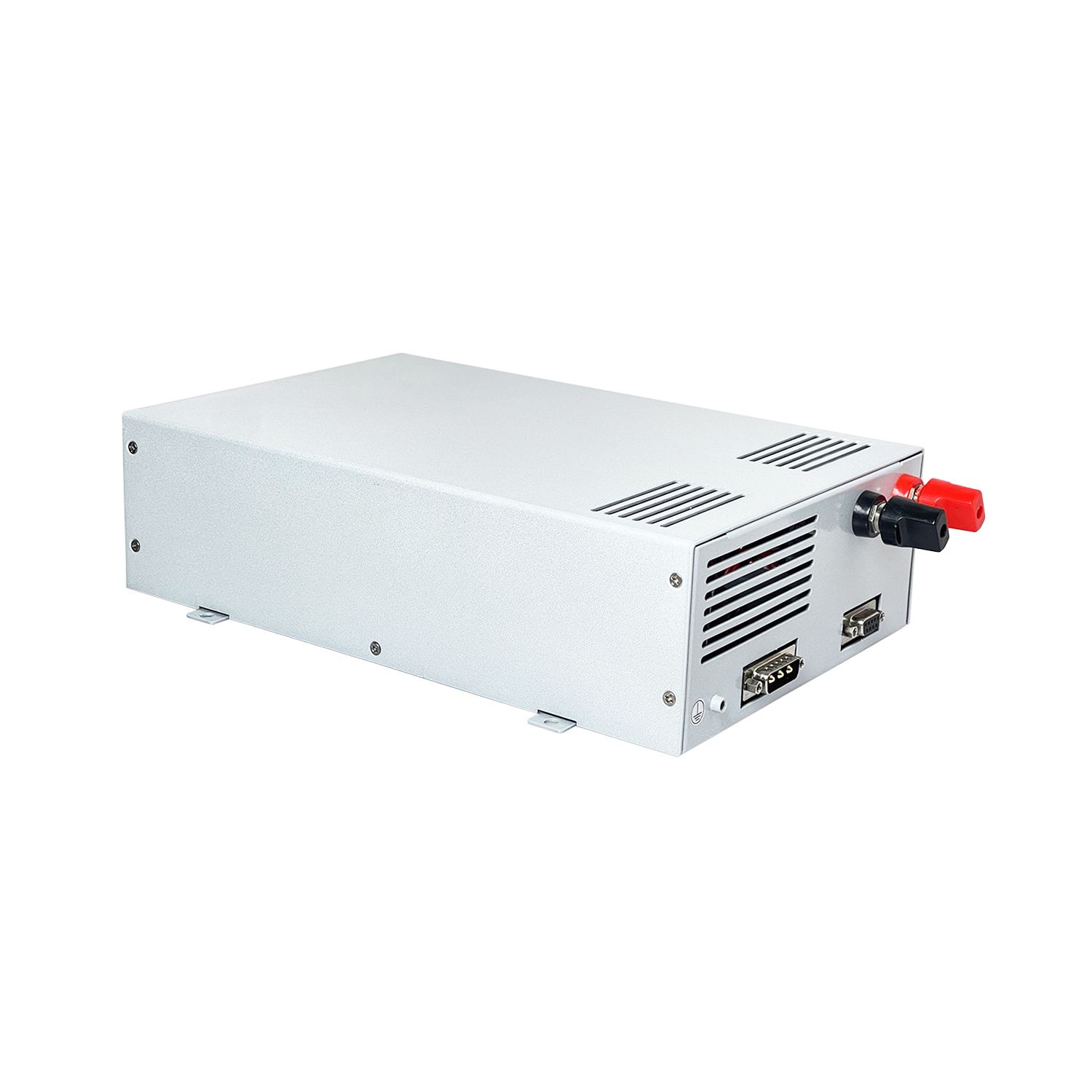

The 100A/46V diode power supply is a constant current pulse output power supply.Output voltage adaptive matching laser load (diode characteristics). It is combined with diode laser handle to form a diode laser system, which can realize the beauty effect of painless permanent hair removal.
| Item | Parameters |
| Input voltage | 220VAC (±10%) |
| Inter voltage frequency | 50Hz~60Hz |
| Output voltage | 8~46VDC |
| Output current | 20~ 100A |
| Output power | Max. 4600W |
| Output ripple (output 100A) | <3A @25℃ |
| Output rise time (output 100A) ① | <1ms |
| Output frequency | 1~ 10Hz |
| Bar number | 4~24 |
| Laser power according to bars | 400~2400W |
| Output current duty cycle | Max. 20% |
| Over-current protection | 104A (Automatic recovery) |
| Temperature protection | 75℃ |
| Working surroundings temperature | -20~40℃ |
| Working surroundings humidity | Relative humidity 10%~75% |
| Storage surroundings temperature | -20~85℃ |
| Storage surroundings humidity | Relative humidity 5%~85% |
| Cooling method | Air cooling |
| Insulation impedance | >20MΩ |
| Dimension(L*W*H) | 328mm x 205mm x 80mm |
| Weight | 3.35kg |
| CE certification number | BSTXD190311180001SC BSTXD190311180001EC |
Product Features
1.Customizable high or low level control signal for light output.
2.Output load automatically matched.
3.Input control signal has 5V limit circuit.
4.Multi protections.
5.Equipped with power factor correction function.
6.Voltage feedback and current feedback.
Relationship Between Control Signal And Output Current
Paper box packaging, with product name, model, manufacturer’s quality department inspection certificate, manufacturing date and other information on the power supply body.
This packaging is suitable for transportation by car, ship, airplane, train, etc.During transportation, it should be rainproof and handled in a civilized manner.
