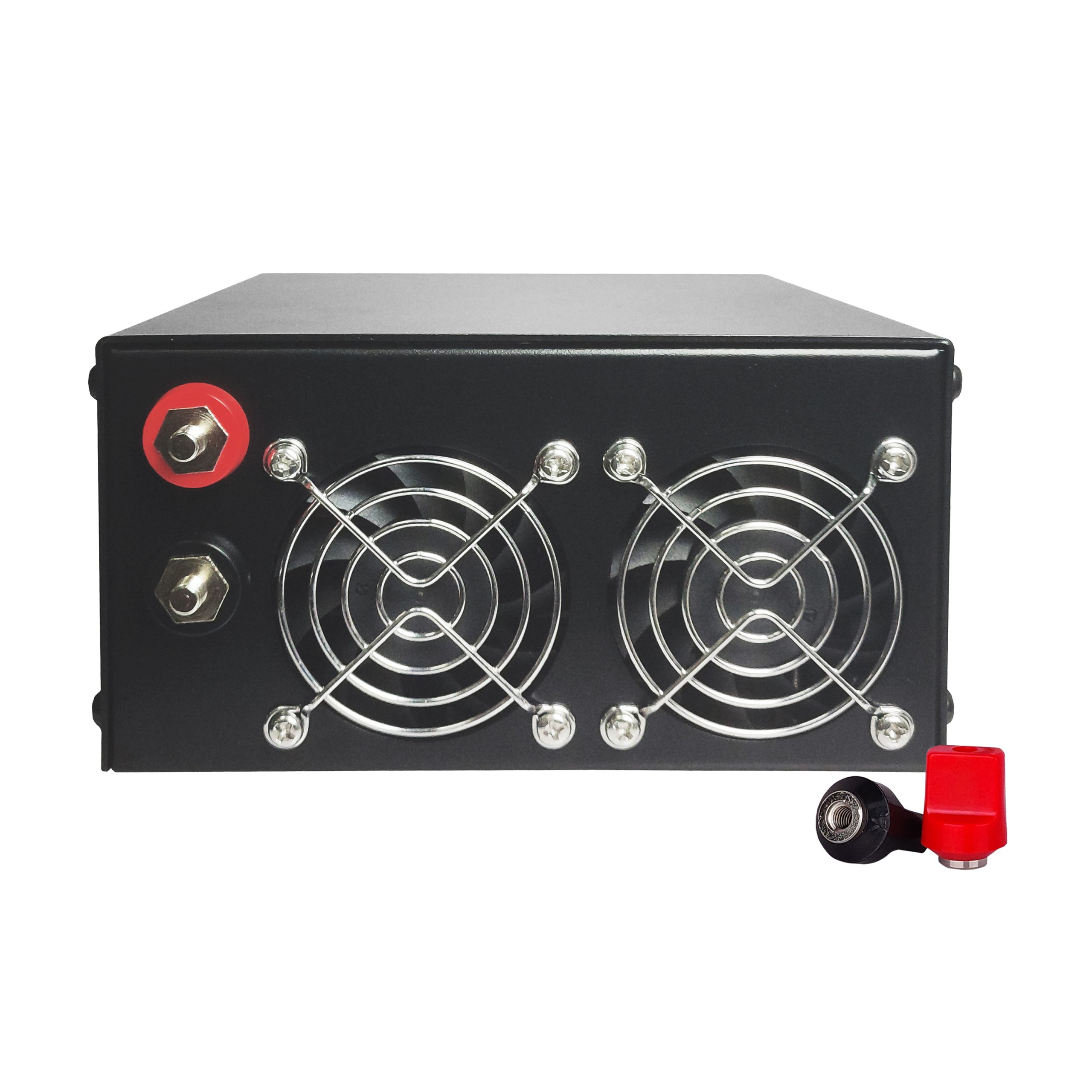

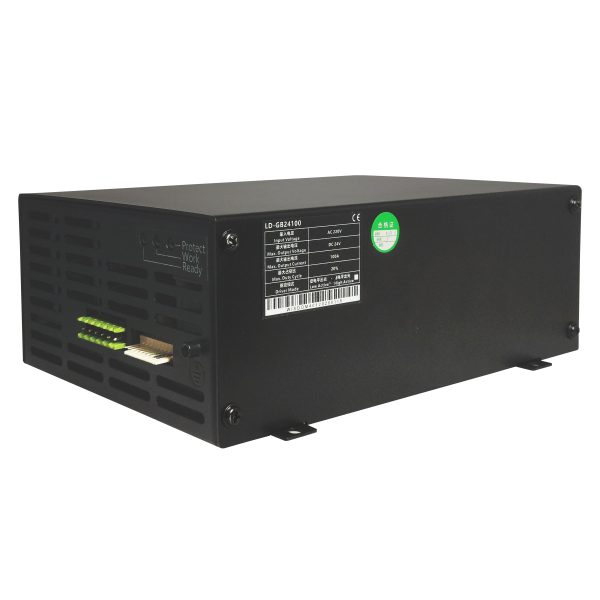

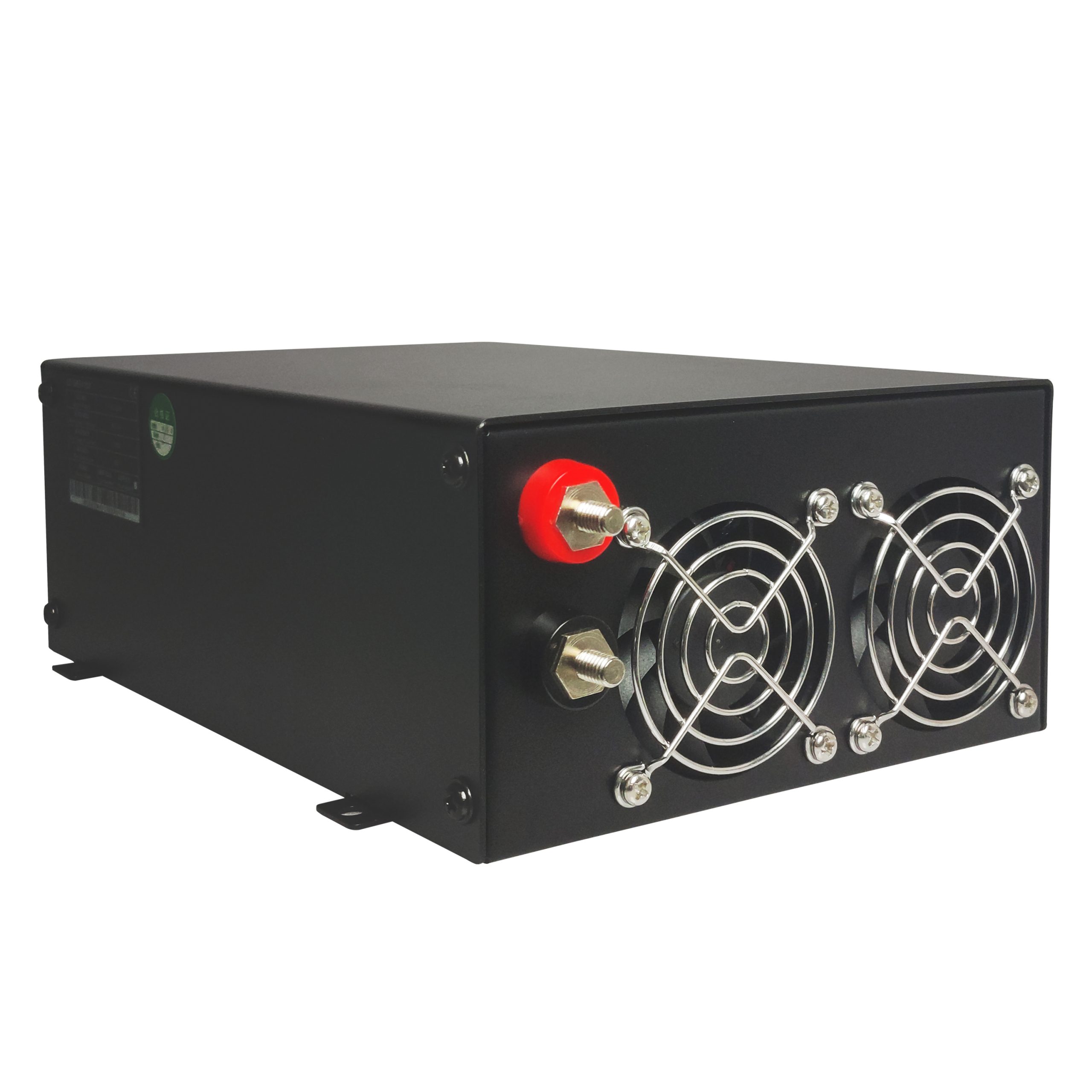

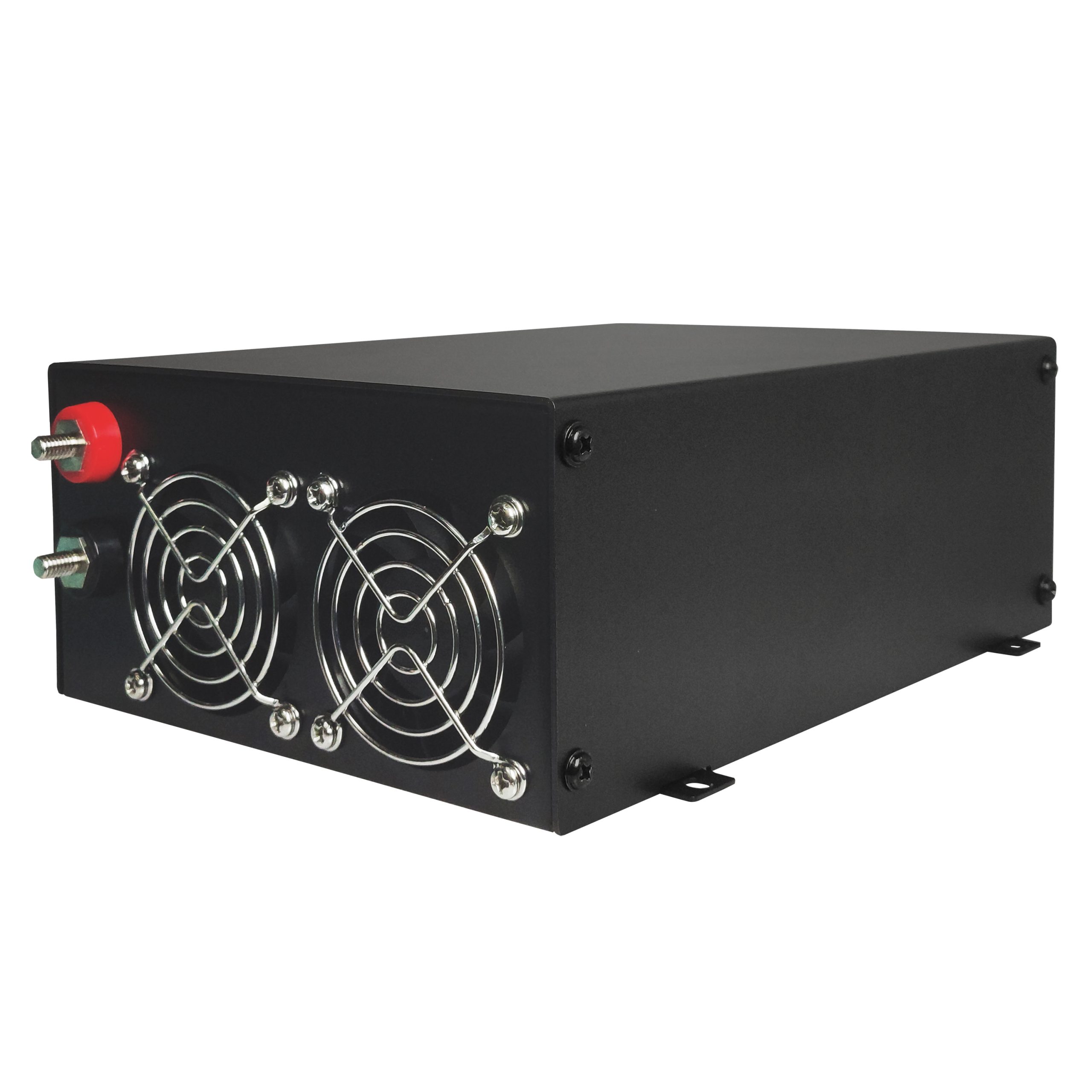

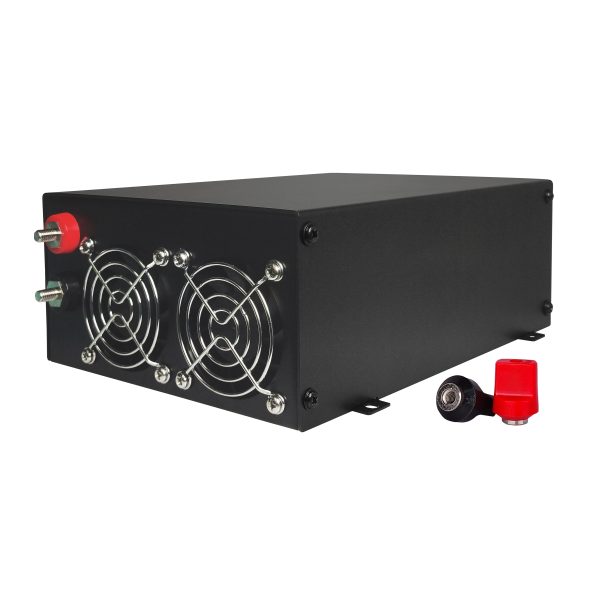

The 100A/24V diode power supply is a constant current pulse output power supply.Output voltage adaptive matching laser load (diode characteristics). It is combined with diode laser handle to form a diode laser system, which can realize the beauty effect of painless permanent hair removal.
| Item | Parameters |
| Input voltage | G–220VAC / W–110VAC (±10%) |
| Inter voltage frequency | 50Hz~60Hz |
| Output voltage | 12~24VDC |
| Output current | 11.2~ 100A |
| Output power | Max. 2400W |
| Output ripple (output 100A) | <1A @25℃ |
| Output rise time (output 100A) | 0.9ms |
| Output frequency | 1~ 10Hz |
| Bar number | 6~ 12 |
| Laser power according to bars | 600~ 1200W |
| Output current duty cycle | Max. 20% |
| Temperature protection | 75℃ |
| Working surroundings temperature | -20~50℃ |
| Working surroundings humidity | Relative humidity 10%~85% |
| Storage surroundings temperature | -20~85℃ |
| Storage surroundings humidity | Relative humidity 5%~85% |
| Cooling method | Air cooling |
| Insulation impedance | >20MΩ |
| Dimension(L*W*H) | 262.3mm x 174.4mm x 82mm |
| Weight | 3. 15kg |
| CE certification number | BSTXD190311180001SC BSTXD190311180001EC |
Product Features
1. Output load automatically matched.
2. Input control signal has 5V limit circuit.
3. Multi protections.
4. Preset current function (optional).
5. Voltage feedback and current feedback.
6.Current control has both digital and analog signal options.
Paper box packaging, with product name, model, manufacturer’s quality department inspection certificate, manufacturing date and other information on the power supply body.
This packaging is suitable for transportation by car, ship, airplane, train, etc. During transportation, it should be rainproof and handled in a civilized manner.
